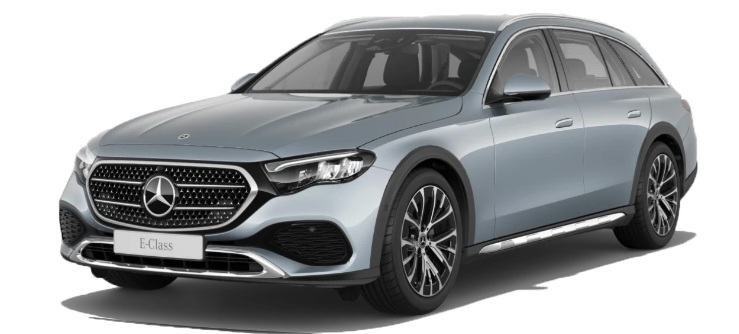

Mercedes-Benz E-class (Station wagon (estate)) E-class All-Terrain (S214) 2023,2024,2025 Specs
General information
| Brand |
Mercedes-Benz |
| Model |
E-class (Station wagon (estate)) |
| Version |
E-class All-Terrain (S214) |
| Engine version |
E 450 (381 Hp) Mild Hybrid 4MATIC 9G-TRONIC |
| Year production start |
2023 |
| Vehicle type |
Station wagon (estate), Crossover |
| Horsepower RPM |
381 Hp @ 5800-6100 rpm. |
| Acceleration 0 - 100 kmh sec |
4.7 sec |
| Curb weight kg -lbs total |
1990 kg
4387.2 lbs.
|
| Overall length mm - inch |
4950 mm
194.88 in.
|
| Doors |
5 |
| Top Speed |
250 km/h, Electronically limited 155.34 mph |
Engine specs
| Designation model |
M 256 |
| Cam configuration |
DOHC, CAMTRONIC
|
| Engine position and orientation |
Front, Longitudinal |
| Cylinders |
6 |
| Position of cylinders |
Inline |
| Displacement (liters) |
2999 cm3
183.01 cu. in.
|
| Eng. horsepower RPM |
381 Hp @ 5800-6100 rpm.
|
| Horsepower per litre |
127 Hp/l
|
| Weight / horsepower kg/hp - hp/tons |
5.2 kg/Hp
191.5 Hp/tonne
|
| Weight / torque kg/Nm - Nm/tons |
4 kg/Nm, 251.3 Nm/tonne
4 kg/Nm
251.3 Nm/tonne
|
| Torque Nm RPM lb-ft RPM |
500 Nm @ 1800-5000 rpm.
368.78 lb.-ft. @ 1800-5000 rpm.
|
| Bore (mm in) |
83 mm
3.27 in.
|
| Stroke (mm in) |
92.4 mm
3.64 in.
|
| Compression ratio |
10.5 |
| Fuel type |
Petrol (Gasoline) |
| Valvetrain |
4 |
| Engine aspiration |
Twin-scroll turbo, Intercooler |
| Engine oil liters | quarts |
9.9 l
10.46 US qt | 8.71 UK qt
|
| Emission certification |
Euro 6d-ISC-FCM
|
| Powertrain architecture |
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV) |
| Electric motor power |
23 Hp
|
| Electric motor torque |
205 Nm 151.2 lb.-ft.
|
Transmission and Drive system
| Drive configuration |
All wheel drive (4x4)
|
Brakes
| Front brakes |
Ventilated discs |
| Rear brakes |
Ventilated discs |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
| Turning diameter m - ft |
12 m
39.37 ft.
|
Suspension
| Front suspension |
Independent multi-link suspension, Transverse stabilizer, Air suspension |
| Rear suspension |
Independent multi-link suspension, Air suspension, Transverse stabilizer |
Wheels & Tyres
| Wheels size |
255/45 R19
|
| Wheels rims |
19 |
Passenger
| Passengers seats |
5 |
| Trunk space min liter | cu. Ft. |
615 l
21.72 cu. ft.
|
| Trunk space max liter | cu. Ft. |
1830 l
64.63 cu. ft.
|
| Roof load load kg lbs |
100 kg
220.46 lbs.
|
Dimensions
| Overall length mm - inch |
4950 mm
194.88 in.
|
| Overall width mm -inch |
1889 mm
74.37 in.
|
| Overall height mm -inch |
1497 mm
58.94 in.
|
| Wheelbase mm - inch |
2961 mm
116.57 in.
|
| Track width front mm - inch |
1626 mm
64.02 in.
|
| Track width rear mm - inch |
1641 mm
64.61 in.
|
| Coefficient of drag |
0.28
|
Weights
| Curb weight kg -lbs total |
1990 kg
4387.2 lbs.
|
| Gross weight kg -lbs total |
2650 kg
5842.25 lbs.
|
| Capacities kg - lbs |
660 kg
1455.05 lbs.
|
| Fuel tank liters | gallons |
66 l
17.44 US gal | 14.52 UK gal
|
Fuel economy
| Combined fuel consumption (WLTP) |
8-8.7 l/100 km 29.4 - 27.04 US mpg |
Engine type
6 CYLINDER INLINE
