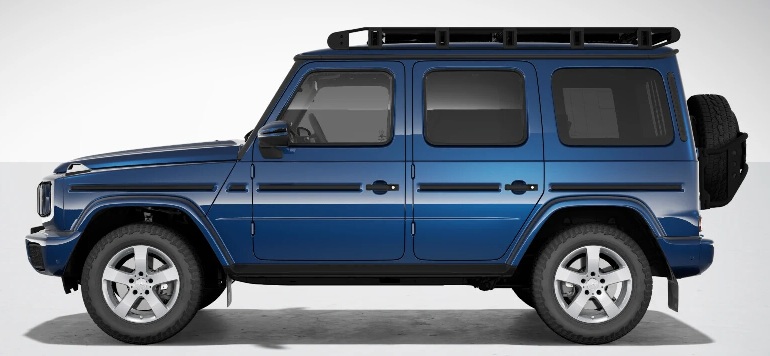

Mercedes-Benz G-class (Off-road vehicle) G-class Long (W463, facelift 2018) 2018,2019,2020 Specs
General information
| Brand |
Mercedes-Benz |
| Model |
G-class (Off-road vehicle) |
| Version |
G-class Long (W463, facelift 2018) |
| Engine version |
G 350d (286 Hp) 4MATIC 9G-TRONIC |
| Year production start |
2018 |
| Year production end |
2020 |
| Vehicle type |
Off-road vehicle |
| Horsepower RPM |
286 Hp @ 3400-4600 rpm. |
| Acceleration 0 - 100 kmh sec |
7.4 sec |
| Curb weight kg -lbs total |
2376 kg
5238.18 lbs.
|
| Overall length mm - inch |
4825 mm
189.96 in.
|
| Doors |
5 |
| Top Speed |
199 km/h 123.65 mph |
Engine specs
| Designation model |
OM 656.929 |
| Cam configuration |
DOHC
|
| Engine position and orientation |
Front, Longitudinal |
| Cylinders |
6 |
| Position of cylinders |
Inline |
| Displacement (liters) |
2925 cm3
178.49 cu. in.
|
| Eng. horsepower RPM |
286 Hp @ 3400-4600 rpm.
|
| Horsepower per litre |
97.8 Hp/l
|
| Weight / horsepower kg/hp - hp/tons |
8.3 kg/Hp
120.4 Hp/tonne
|
| Weight / torque kg/Nm - Nm/tons |
4 kg/Nm, 252.5 Nm/tonne
4 kg/Nm
252.5 Nm/tonne
|
| Torque Nm RPM lb-ft RPM |
600 Nm @ 1200-3200 rpm.
442.54 lb.-ft. @ 1200-3200 rpm.
|
| Bore (mm in) |
82 mm
3.23 in.
|
| Stroke (mm in) |
92.4 mm
3.64 in.
|
| Compression ratio |
15.5 |
| Fuel delivery system |
Diesel Commonrail |
| Fuel type |
Diesel |
| Valvetrain |
4 |
| Engine aspiration |
Turbocharger, Intercooler |
| Engine oil liters | quarts |
9.5 l
10.04 US qt | 8.36 UK qt
|
| Emission certification |
Euro 6
|
| Powertrain architecture |
Internal Combustion engine |
| Engine location |
Front, Longitudinal
|
Transmission and Drive system
| Drive configuration |
All wheel drive (4x4)
|
Brakes
| Front brakes |
Ventilated discs |
| Rear brakes |
Ventilated discs |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
| Turning diameter m - ft |
13.6 m
44.62 ft.
|
Suspension
| Front suspension |
Double wishbone |
| Rear suspension |
Rigid axle suspension |
Wheels & Tyres
| Wheels size |
265/60 R18; 275/55 R19; 275/50 R20
|
| Wheels rims |
7.5J x 18; 8.5J x 19; 8.5J x 20 |
Passenger
| Passengers seats |
5 |
| Trunk space min liter | cu. Ft. |
667 l
23.55 cu. ft.
|
| Trunk space max liter | cu. Ft. |
1941 l
68.55 cu. ft.
|
| Roof load load kg lbs |
150 kg
330.69 lbs.
|
Dimensions
| Overall length mm - inch |
4825 mm
189.96 in.
|
| Overall width mm -inch |
1931 mm
76.02 in.
|
| Overall height mm -inch |
1969 mm
77.52 in.
|
| Wheelbase mm - inch |
2890 mm
113.78 in.
|
| Track width front mm - inch |
1638 mm
64.49 in.
|
| Track width rear mm - inch |
1638 mm
64.49 in.
|
| Coefficient of drag |
0.54
|
Weights
| Curb weight kg -lbs total |
2376 kg
5238.18 lbs.
|
| Gross weight kg -lbs total |
3150 kg
6944.56 lbs.
|
| Capacities kg - lbs |
774 kg
1706.38 lbs.
|
| Fuel tank liters | gallons |
75 l
19.81 US gal | 16.5 UK gal
|
Fuel economy
| Urban (NEDC) l/100 km - Mpg |
10.8-11 l/100 km
21.78 - 21.38 US mpg
|
| Extra urban (NEDC) l/100 km - Mpg |
8.9-9.2 l/100 km
26.43 - 25.57 US mpg
|
| Combined (NEDC) l/100 km - Mpg |
9.6-9.8 l/100 km
24.5 - 24 US mpg
|
| Autonomy km (combined use) NEDC |
781?25 |
Engine type
6 CYLINDER INLINE
