Key specs

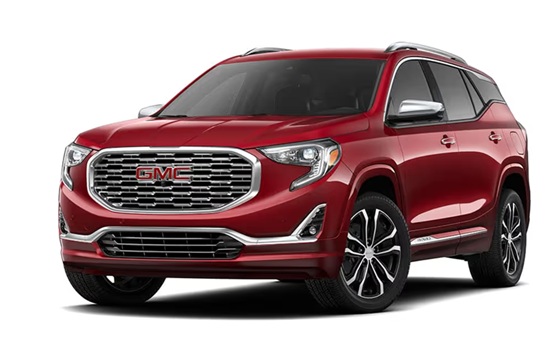

Gmc Terrain (SUV) Terrain II (facelift 2022) 2021,2022,2023,2024
What is the body type, GMC Terrain II (facelift 2022) 1.5L turbo (173 Hp) AWD Automatic 2021?
SUV, 5 Doors, 5 Seats
How much power, GMC Terrain II (facelift 2022) 1.5L turbo (173 Hp) AWD Automatic 2021?
173 Hp @ 5600 rpm.
116.1 Hp/l
What is the engine size, GMC Terrain II (facelift 2022) 1.5L turbo (173 Hp) AWD Automatic 2021?
1490 cm3
90.93 cu. in.
How many cylinders, GMC Terrain II (facelift 2022) 1.5L turbo (173 Hp) AWD Automatic 2021?
4,
Inline
What is the drivetrain, GMC Terrain II (facelift 2022) 1.5L turbo (173 Hp) AWD Automatic 2021?
All wheel drive (4x4),
How long is this vehicle, GMC Terrain II (facelift 2022) 1.5L turbo (173 Hp) AWD Automatic 2021?
4630 mm
182.28 in.
How wide is the vehicle, GMC Terrain II (facelift 2022) 1.5L turbo (173 Hp) AWD Automatic 2021?
1839 mm
72.4 in.
What is the curb weight, GMC Terrain II (facelift 2022) 1.5L turbo (173 Hp) AWD Automatic 2021?
1643-1660 kg
3622.19 - 3659.67 lbs.
Gmc Terrain (SUV) Terrain II (facelift 2022) 2021,2022,2023,2024 Specs
General information
| Brand |
GMC |
| Model |
Terrain (SUV) |
| Version |
Terrain II (facelift 2022) |
| Engine version |
1.5L turbo (173 Hp) AWD Automatic |
| Year production start |
2021 |
| Vehicle type |
SUV |
| Horsepower RPM |
173 Hp @ 5600 rpm. |
| Curb weight kg -lbs total |
1643-1660 kg
3622.19 - 3659.67 lbs.
|
| Overall length mm - inch |
4630 mm
182.28 in.
|
| Doors |
5 |
Engine specs
| Designation model |
LYX |
| Cam configuration |
DOHC, VVT
|
| Engine position and orientation |
Front, Transverse |
| Cylinders |
4 |
| Position of cylinders |
Inline |
| Displacement (liters) |
1490 cm3
90.93 cu. in.
|
| Eng. horsepower RPM |
173 Hp @ 5600 rpm.
|
| Horsepower per litre |
116.1 Hp/l
|
| Weight / horsepower kg/hp - hp/tons |
9.5 kg/Hp
105.3 Hp/tonne
|
| Weight / torque kg/Nm - Nm/tons |
6 kg/Nm, 167.4 Nm/tonne
6 kg/Nm
167.4 Nm/tonne
|
| Torque Nm RPM lb-ft RPM |
275 Nm @ 2000-4000 rpm.
202.83 lb.-ft. @ 2000-4000 rpm.
|
| Bore (mm in) |
74 mm
2.91 in.
|
| Stroke (mm in) |
86.6 mm
3.41 in.
|
| Fuel delivery system |
Direct injection |
| Fuel type |
Petrol (Gasoline) |
| Valvetrain |
4 |
| Engine aspiration |
Turbocharger |
| Engine oil liters | quarts |
4.0 l
4.23 US qt | 3.52 UK qt
|
| Engine coolant |
6.6 l
6.97 US qt | 5.81 UK qt
|
| Powertrain architecture |
Internal Combustion engine |
| Engine location |
Front, Transverse
|
Transmission and Drive system
| Drive configuration |
All wheel drive (4x4)
|
Brakes
| Front brakes |
Ventilated discs, 300 mm |
| Rear brakes |
Disc, 288 mm |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
| Turning diameter m - ft |
11.4-12.7 m
37.4 - 41.67 ft.
|
Suspension
| Front suspension |
Independent, Spring McPherson, with stabilizer |
| Rear suspension |
Multi-link independent |
Wheels & Tyres
| Wheels size |
225/65 R17; 225/60 R18; 235/50 R19
|
Passenger
| Passengers seats |
5 |
| Trunk space min liter | cu. Ft. |
838 l
29.59 cu. ft.
|
| Trunk space max liter | cu. Ft. |
1792 l
63.28 cu. ft.
|
Dimensions
| Overall length mm - inch |
4630 mm
182.28 in.
|
| Overall width mm -inch |
1839 mm
72.4 in.
|
| Overall height mm -inch |
1661 mm
65.39 in.
|
| Wheelbase mm - inch |
2725 mm
107.28 in.
|
| Track width front mm - inch |
1582 mm
62.28 in.
|
| Track width rear mm - inch |
1587 mm
62.48 in.
|
Weights
| Curb weight kg -lbs total |
1643-1660 kg
3622.19 - 3659.67 lbs.
|
| Fuel tank liters | gallons |
59 l
15.59 US gal | 12.98 UK gal
|
Engine type
4 CYLINDER INLINE
