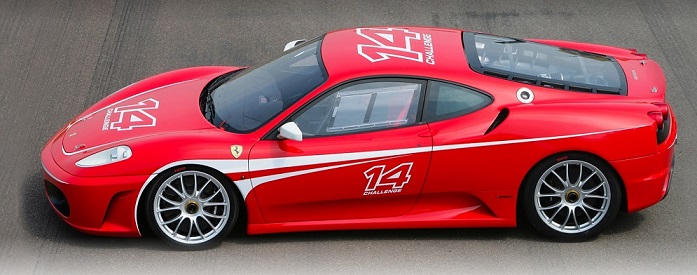

Ferrari F430 Challenge 4.3 V8 (490 Hp) 2007

Key specs

Ferrari F430 (Coupe) F430 Challenge 2007,2008,2009,2010

What is the body type, Ferrari F430 Challenge 4.3 V8 (490 Hp) 2007?

Coupe, 2 Doors, 2 Seats

How much power, Ferrari F430 Challenge 4.3 V8 (490 Hp) 2007?

490 Hp @ 8500 rpm.
113.7 Hp/l

How fast is the car, Ferrari F430 Challenge 4.3 V8 (490 Hp) 2007?

320 km/h 198.84 mph

What is the engine size, Ferrari F430 Challenge 4.3 V8 (490 Hp) 2007?

4308 cm3
262.89 cu. in.

How many cylinders, Ferrari F430 Challenge 4.3 V8 (490 Hp) 2007?

8, V-engine

What is the drivetrain, Ferrari F430 Challenge 4.3 V8 (490 Hp) 2007?

Rear wheel drive,

How long is this vehicle, Ferrari F430 Challenge 4.3 V8 (490 Hp) 2007?

4512 mm
177.64 in.

How wide is the vehicle, Ferrari F430 Challenge 4.3 V8 (490 Hp) 2007?

1923 mm
75.71 in.

What is the curb weight, Ferrari F430 Challenge 4.3 V8 (490 Hp) 2007?

1225 kg
2700.66 lbs.

Ferrari F430 (Coupe) F430 Challenge 2007,2008,2009,2010 Specs

General information

Brand Ferrari
Model F430 (Coupe)
Version F430 Challenge
Engine version 4.3 V8 (490 Hp)
Year production start 2007
Year production end 2010
Vehicle type Coupe
Horsepower RPM 490 Hp @ 8500 rpm.
Acceleration 0 - 100 kmh sec 3.2 sec
Curb weight kg -lbs total

1225 kg

2700.66 lbs.
Overall length mm - inch

4512 mm

177.64 in.
Doors 2
Top Speed 320 km/h 198.84 mph

Engine specs

Designation model F136 E, F136 EA
Cam configuration DOHC
Engine position and orientation Middle, Longitudinal
Cylinders 8
Position of cylinders V-engine
Displacement (liters)

4308 cm3

262.89 cu. in.
Eng. horsepower RPM 490 Hp @ 8500 rpm.
Horsepower per litre 113.7 Hp/l
Weight / horsepower kg/hp - hp/tons

2.5 kg/Hp

400 Hp/tonne
Weight / torque kg/Nm - Nm/tons 2.6 kg/Nm, 379.6 Nm/tonne

2.6 kg/Nm

379.6 Nm/tonne
Torque Nm RPM lb-ft RPM

465 Nm @ 5250 rpm.

342.97 lb.-ft. @ 5250 rpm.
Bore (mm in)

91.95 mm

3.62 in.
Stroke (mm in)

81.03 mm

3.19 in.
Fuel delivery system Multi-point indirect injection
Fuel type Petrol (Gasoline)
Valvetrain 4
Engine aspiration Naturally aspirated engine
Powertrain architecture Internal Combustion engine
Engine location Middle, Longitudinal

Transmission and Drive system

Drive configuration Rear wheel drive
Transmission 6

Brakes

Front brakes Ventilated discs
Rear brakes Ventilated discs
Anti-lock brake system ABS (Anti-lock braking system)

Steering

Steering type Steering rack and pinion

Suspension

Front suspension Spring Strut
Rear suspension Spring Strut

Body / Chassis

Wheels & Tyres

Exterior

Interior

Safety and Security

Passenger

Passengers seats 2

Dimensions

Overall length mm - inch

4512 mm

177.64 in.
Overall width mm -inch

1923 mm

75.71 in.
Overall height mm -inch

1184 mm

46.61 in.
Wheelbase mm - inch

2601 mm

102.4 in.
Track width front mm - inch

1669 mm

65.71 in.
Track width rear mm - inch

1616 mm

63.62 in.

Weights

Curb weight kg -lbs total

1225 kg

2700.66 lbs.
Fuel tank liters | gallons

100 l

26.42 US gal | 22 UK gal

Fuel economy

Engine type

8 CYLINDER V-Engine
It's an engine with eight cylinder piston where the cylinders share a common crankshaft and are arranged in a V configuration.

What is the 8 cylinder V-engine displacement: it is in a range between 2926 cc and 8135 cc in recent model line up powertrain.

How much is the power of the 8 cylinder V-engine: the power of the 8 cylinder V-engine is in a range from 125 bhp to 1160 bhp.

Which cars use 8 cylinder V-engine: in recent years several manufactures have been used the V8 engine for 3 main applications: premium, sport cars and lightweight trucks. 8 V engine is the American preferred engine for iconic giant pick-up.

What is the eight cylinder V angle: the majority of V8 engines use a V-angle of 90 degrees. This angle results in good engine balance and low vibrations. The downside is a larger powertrain body that makes the use of this configuration suitable only for longitudinal position and rear drive wheels traction.

V8 engines with a 60 degree V-angle were used in the 1996-1999 by Ford and in 2005-2011 by Volvo. The Ford engine used a 60 degree V-angle because it was based on a V6 engine with a 60 degree V-angle. Both the Ford and Volvo engines were used in transverse engine chassis, which were designed for a front-wheel-drive layout. To reduce the vibrations caused by the unbalanced 60 degree V-angle, Volvo's used a balance shaft and offset split crankpins.

The Rolls-Royce Meteorite tank engine also used a 60 degree V-angle, since it was derived from the 60 degree V12 Rolls-Royce Meteor which in turn was based on the famous Rolls-Royce Merlin V12 engine.

Most V8 engines fitted to road cars use a cross-plane crankshaft, since this configuration produces less vibration due to the perfect primary balance and secondary balance.

The rumbling exhaust sound produced by a typical cross-plane V8 engine is partly due to the uneven firing order within each of the two banks of four cylinders and with separate exhaust systems for each bank of cylinders, this uneven pulsing creates the legendary rumbling sound that is typically of V8 engines.
