Station wagon (estate), 5 Doors, 5 Seats
6 l/100 km 39.2 US mpg
90 Hp @ 4000 rpm.
47.2 Hp/l
177 km/h 109.98 mph
1905 cm3
116.25 cu. in.
4, Inline
Front wheel drive,
4260 mm
167.72 in.
1702 mm
67.01 in.
1150 kg
2535.32 lbs.
| Brand | Citroen |
|---|---|

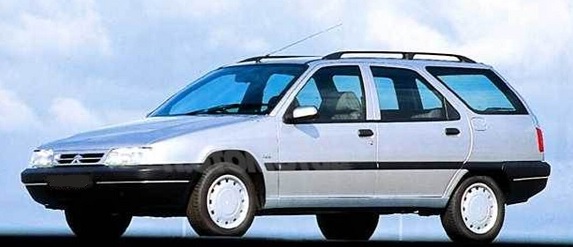

| Model | ZX (Station wagon (estate)) |
| Version | ZX Break (N2) |
| Engine version | 1.9 TD (90 Hp) |
| Year production start | 1994 |
| Year production end | 1998 |
| Vehicle type | Station wagon (estate) |
| Horsepower RPM | 90 Hp @ 4000 rpm. |
| Acceleration 0 - 100 kmh sec | 12.8 sec |
| Curb weight kg -lbs total |
1150 kg2535.32 lbs. |
| Overall length mm - inch |
4260 mm167.72 in. |
| Doors | 5 |
| Top Speed | 177 km/h 109.98 mph |
| Cam configuration | OHC |
|---|---|
| Engine position and orientation | Front, Transverse |
| Cylinders | 4 |
| Position of cylinders | Inline |
| Displacement (liters) |
1905 cm3116.25 cu. in. |
| Eng. horsepower RPM | 90 Hp @ 4000 rpm. |
| Horsepower per litre | 47.2 Hp/l |
| Weight / horsepower kg/hp - hp/tons |
12.8 kg/Hp78.3 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 5.9 kg/Nm, 170.4 Nm/tonne
5.9 kg/Nm170.4 Nm/tonne |
| Torque Nm RPM lb-ft RPM |
196 Nm @ 2250 rpm.144.56 lb.-ft. @ 2250 rpm. |
| Bore (mm in) |
83 mm3.27 in. |
| Stroke (mm in) |
88 mm3.46 in. |
| Compression ratio | 21.8 |
| Fuel delivery system | Diesel - Standard diesel injection (SDI) |
| Fuel type | Diesel |
| Valvetrain | 2 |
| Engine aspiration | Turbocharger |
| Powertrain architecture | Internal Combustion engine |
| Engine location | Front, Transverse |
| Drive configuration | Front wheel drive |
|---|---|
| Transmission | 5 |
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Ventilated discs |
| Brake control | Drum |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
|---|
| Front suspension | Wishbone |
|---|---|
| Rear suspension | Trailing arm |
| Wheels size | 175/65 R14 |
|---|
| Passengers seats | 5 |
|---|---|
| Trunk space min liter | cu. Ft. |
488 l17.23 cu. ft. |
| Trunk space max liter | cu. Ft. |
1580 l55.8 cu. ft. |
| Overall length mm - inch |
4260 mm167.72 in. |
|---|---|
| Overall width mm -inch |
1702 mm67.01 in. |
| Overall height mm -inch |
1421 mm55.94 in. |
| Wheelbase mm - inch |
2540 mm100 in. |
| Track width front mm - inch |
1422 mm55.98 in. |
| Track width rear mm - inch |
1415 mm55.71 in. |
| Curb weight kg -lbs total |
1150 kg2535.32 lbs. |
|---|---|
| Gross weight kg -lbs total |
1665 kg3670.7 lbs. |
| Capacities kg - lbs |
515 kg1135.38 lbs. |
| Fuel tank liters | gallons |
56 l14.79 US gal | 12.32 UK gal |
| Combined l/100 km - Mpg |
6 l/100 km39.2 US mpg |
|---|---|
| Autonomy km (combined use) | #VALORE! |
