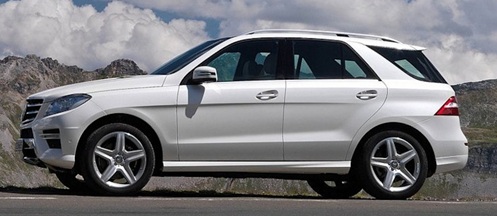

Mercedes-Benz M-class (W166) ML 500 (408 Hp) 4MATIC G-TRONIC 2012

Key specs

Mercedes-Benz M-class (SUV) M-class (W166) 2012,2013,2014,2015

What is the body type, Mercedes-Benz M-class (W166) ML 500 (408 Hp) 4MATIC G-TRONIC 2012?

SUV, 5 Doors, 5 Seats

What is the fuel economy, Mercedes-Benz M-class (W166) ML 500 (408 Hp) 4MATIC G-TRONIC 2012?

11.5-11.0 l/100 km 20.45 - 21.38 US mpg
15.2-14.7 l/100 km 15.47 - 16 US mpg
9.5-8.9 l/100 km 24.76 - 26.43 US mpg

How much power, Mercedes-Benz M-class (W166) ML 500 (408 Hp) 4MATIC G-TRONIC 2012?

408 Hp @ 5000-5750 rpm.
87.5 Hp/l

How fast is the car, Mercedes-Benz M-class (W166) ML 500 (408 Hp) 4MATIC G-TRONIC 2012?

250 km/h 155.34 mph

What is the engine size, Mercedes-Benz M-class (W166) ML 500 (408 Hp) 4MATIC G-TRONIC 2012?

4663 cm3
284.55 cu. in.

How many cylinders, Mercedes-Benz M-class (W166) ML 500 (408 Hp) 4MATIC G-TRONIC 2012?

8, V-engine

What is the drivetrain, Mercedes-Benz M-class (W166) ML 500 (408 Hp) 4MATIC G-TRONIC 2012?

All wheel drive (4x4),

How long is this vehicle, Mercedes-Benz M-class (W166) ML 500 (408 Hp) 4MATIC G-TRONIC 2012?

4804 mm
189.13 in.

How wide is the vehicle, Mercedes-Benz M-class (W166) ML 500 (408 Hp) 4MATIC G-TRONIC 2012?

1926 mm
75.83 in.

What is the curb weight, Mercedes-Benz M-class (W166) ML 500 (408 Hp) 4MATIC G-TRONIC 2012?

2235 kg
4927.33 lbs.

Mercedes-Benz M-class (SUV) M-class (W166) 2012,2013,2014,2015 Specs

General information

Brand Mercedes-Benz
Model M-class (SUV)
Version M-class (W166)
Engine version ML 500 (408 Hp) 4MATIC G-TRONIC
Year production start 2012
Year production end 2015
Vehicle type SUV
Horsepower RPM 408 Hp @ 5000-5750 rpm.
Acceleration 0 - 100 kmh sec 5.6 sec
Curb weight kg -lbs total

2235 kg

4927.33 lbs.
Overall length mm - inch

4804 mm

189.13 in.
Doors 5
Top Speed 250 km/h 155.34 mph

Engine specs

Designation model M278.928
Engine position and orientation Front, Longitudinal
Cylinders 8
Position of cylinders V-engine
Displacement (liters)

4663 cm3

284.55 cu. in.
Eng. horsepower RPM 408 Hp @ 5000-5750 rpm.
Horsepower per litre 87.5 Hp/l
Weight / horsepower kg/hp - hp/tons

5.5 kg/Hp

182.6 Hp/tonne
Weight / torque kg/Nm - Nm/tons 3.7 kg/Nm, 268.5 Nm/tonne

3.7 kg/Nm

268.5 Nm/tonne
Torque Nm RPM lb-ft RPM

600 Nm @ 1600-4750 rpm.

442.54 lb.-ft. @ 1600-4750 rpm.
Compression ratio 10.5
Fuel delivery system Direct injection
Fuel type Petrol (Gasoline)
Engine aspiration Twin-Turbo, Intercooler
Engine oil liters | quarts

8.5 l

8.98 US qt | 7.48 UK qt
Engine coolant

12.9 l

13.63 US qt | 11.35 UK qt
Emission certification Euro 5
Powertrain architecture Internal Combustion engine
Engine location Front, Longitudinal

Transmission and Drive system

Drive configuration All wheel drive (4x4)

Brakes

Front brakes Ventilated discs
Rear brakes Ventilated discs
Anti-lock brake system ABS (Anti-lock braking system)

Steering

Steering type Steering rack and pinion
Turning diameter m - ft

11.8 m

38.71 ft.

Suspension

Front suspension Double wishbone
Rear suspension Multi-link independent

Body / Chassis

Wheels & Tyres

Wheels size 255/50 R19
Wheels rims 19

Exterior

Interior

Safety and Security

Passenger

Passengers seats 5
Trunk space min liter | cu. Ft.

690 l

24.37 cu. ft.
Trunk space max liter | cu. Ft.

2010 l

70.98 cu. ft.

Dimensions

Overall length mm - inch

4804 mm

189.13 in.
Overall width mm -inch

1926 mm

75.83 in.
Overall height mm -inch

1796 mm

70.71 in.
Wheelbase mm - inch

2915 mm

114.76 in.
Track width front mm - inch

1648 mm

64.88 in.
Track width rear mm - inch

1663 mm

65.47 in.

Weights

Curb weight kg -lbs total

2235 kg

4927.33 lbs.
Gross weight kg -lbs total

2950 kg

6503.64 lbs.
Capacities kg - lbs

715 kg

1576.31 lbs.
Fuel tank liters | gallons

93 l

24.57 US gal | 20.46 UK gal

Fuel economy

City l/100km - mpg

15.2-14.7 l/100 km

15.47 - 16 US mpg
Highway l/100 km - mpg

9.5-8.9 l/100 km

24.76 - 26.43 US mpg
Combined l/100 km - Mpg

11.5-11.0 l/100 km

20.45 - 21.38 US mpg
Autonomy km (combined use) 845

Engine type

8 CYLINDER V-Engine
It's an engine with eight cylinder piston where the cylinders share a common crankshaft and are arranged in a V configuration.

What is the 8 cylinder V-engine displacement: it is in a range between 2926 cc and 8135 cc in recent model line up powertrain.

How much is the power of the 8 cylinder V-engine: the power of the 8 cylinder V-engine is in a range from 125 bhp to 1160 bhp.

Which cars use 8 cylinder V-engine: in recent years several manufactures have been used the V8 engine for 3 main applications: premium, sport cars and lightweight trucks. 8 V engine is the American preferred engine for iconic giant pick-up.

What is the eight cylinder V angle: the majority of V8 engines use a V-angle of 90 degrees. This angle results in good engine balance and low vibrations. The downside is a larger powertrain body that makes the use of this configuration suitable only for longitudinal position and rear drive wheels traction.

V8 engines with a 60 degree V-angle were used in the 1996-1999 by Ford and in 2005-2011 by Volvo. The Ford engine used a 60 degree V-angle because it was based on a V6 engine with a 60 degree V-angle. Both the Ford and Volvo engines were used in transverse engine chassis, which were designed for a front-wheel-drive layout. To reduce the vibrations caused by the unbalanced 60 degree V-angle, Volvo's used a balance shaft and offset split crankpins.

The Rolls-Royce Meteorite tank engine also used a 60 degree V-angle, since it was derived from the 60 degree V12 Rolls-Royce Meteor which in turn was based on the famous Rolls-Royce Merlin V12 engine.

Most V8 engines fitted to road cars use a cross-plane crankshaft, since this configuration produces less vibration due to the perfect primary balance and secondary balance.

The rumbling exhaust sound produced by a typical cross-plane V8 engine is partly due to the uneven firing order within each of the two banks of four cylinders and with separate exhaust systems for each bank of cylinders, this uneven pulsing creates the legendary rumbling sound that is typically of V8 engines.
