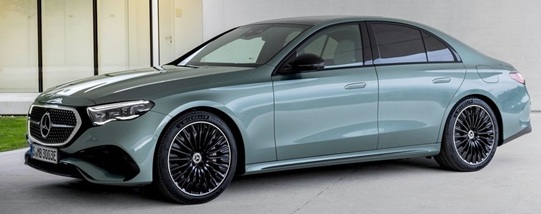

Mercedes-Benz E-class (Sedan) E-class (W214) 2023,2024,2025 Specs
General information
| Brand |
Mercedes-Benz |
| Model |
E-class (Sedan) |
| Version |
E-class (W214) |
| Engine version |
E 450 (381 Hp) Mild Hybrid 4MATIC 9G-TRONIC |
| Year production start |
2023 |
| Vehicle type |
Sedan |
| Horsepower RPM |
381 Hp @ 5800-6100 rpm. |
| Acceleration 0 - 100 kmh sec |
4.5 sec |
| Curb weight kg -lbs total |
1895 kg
4177.76 lbs.
|
| Overall length mm - inch |
4949 mm
194.84 in.
|
| Doors |
4 |
| Top Speed |
250 km/h, Electronically limited 155.34 mph |
Engine specs
| Designation model |
M 256 |
| Cam configuration |
DOHC, CAMTRONIC
|
| Engine position and orientation |
Front, Longitudinal |
| Cylinders |
6 |
| Position of cylinders |
Inline |
| Displacement (liters) |
2999 cm3
183.01 cu. in.
|
| Eng. horsepower RPM |
381 Hp @ 5800-6100 rpm.
|
| Horsepower per litre |
127 Hp/l
|
| Weight / horsepower kg/hp - hp/tons |
5 kg/Hp
201.1 Hp/tonne
|
| Weight / torque kg/Nm - Nm/tons |
3.8 kg/Nm, 263.9 Nm/tonne
3.8 kg/Nm
263.9 Nm/tonne
|
| Torque Nm RPM lb-ft RPM |
500 Nm @ 1800-5000 rpm.
368.78 lb.-ft. @ 1800-5000 rpm.
|
| Bore (mm in) |
83 mm
3.27 in.
|
| Stroke (mm in) |
92.4 mm
3.64 in.
|
| Compression ratio |
10.5 |
| Fuel type |
Petrol (Gasoline) |
| Valvetrain |
4 |
| Engine aspiration |
Twin-scroll turbo, Intercooler |
| Engine oil liters | quarts |
9.9 l
10.46 US qt | 8.71 UK qt
|
| Emission certification |
Euro 6d-ISC-FCM
|
| Powertrain architecture |
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV) |
| Electric motor power |
23 Hp
|
| Electric motor torque |
205 Nm 151.2 lb.-ft.
|
Transmission and Drive system
| Drive configuration |
All wheel drive (4x4)
|
Brakes
| Front brakes |
Ventilated discs |
| Rear brakes |
Ventilated discs |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
| Turning diameter m - ft |
12 m
39.37 ft.
|
Suspension
| Front suspension |
Independent multi-link suspension, Transverse stabilizer, Air Suspension - Optional |
| Rear suspension |
Independent multi-link suspension, Transverse stabilizer, Air Suspension - Optional |
Wheels & Tyres
| Wheels size |
Front wheel tires: 225/55 R18; 245/45 R19
|
| Wheels rims |
Front wheel rims: 8J x 18; 8.5J x 19 |
Passenger
| Passengers seats |
5 |
| Trunk space min liter | cu. Ft. |
540 l
19.07 cu. ft.
|
| Roof load load kg lbs |
100 kg
220.46 lbs.
|
Dimensions
| Overall length mm - inch |
4949 mm
194.84 in.
|
| Overall width mm -inch |
1880 mm
74.02 in.
|
| Overall height mm -inch |
1469 mm
57.83 in.
|
| Wheelbase mm - inch |
2961 mm
116.57 in.
|
| Track width front mm - inch |
1629 mm
64.13 in.
|
| Track width rear mm - inch |
1643 mm
64.69 in.
|
| Coefficient of drag |
0.23
|
Weights
| Curb weight kg -lbs total |
1895 kg
4177.76 lbs.
|
| Gross weight kg -lbs total |
2585 kg
5698.95 lbs.
|
| Capacities kg - lbs |
690 kg
1521.19 lbs.
|
| Fuel tank liters | gallons |
66 l
17.44 US gal | 14.52 UK gal
|
Fuel economy
| Combined fuel consumption (WLTP) |
7.6-8.4 l/100 km 30.95 - 28 US mpg |
Engine type
6 CYLINDER INLINE
