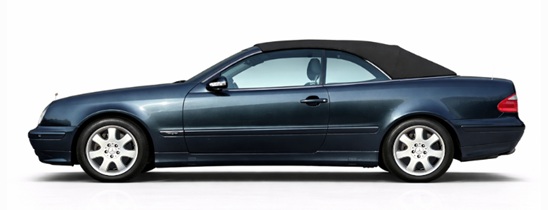

Mercedes-Benz CLK (A208, facelift 1999) CLK 430 (279 Hp) 5G TRONIC 1997

Key specs

Mercedes-Benz CLK (Convertible) CLK (A208, facelift 1999) 1997,1998,1999,2000,2001,2002,2003

What is the body type, Mercedes-Benz CLK (A208, facelift 1999) CLK 430 (279 Hp) 5G TRONIC 1997?

Convertible, 2 Doors, 4 Seats

What is the fuel economy, Mercedes-Benz CLK (A208, facelift 1999) CLK 430 (279 Hp) 5G TRONIC 1997?

12.2 l/100 km 19.28 US mpg
17.7 l/100 km 13.29 US mpg
9 l/100 km 26.13 US mpg

How much power, Mercedes-Benz CLK (A208, facelift 1999) CLK 430 (279 Hp) 5G TRONIC 1997?

279 Hp @ 5750 rpm.
65.4 Hp/l

How fast is the car, Mercedes-Benz CLK (A208, facelift 1999) CLK 430 (279 Hp) 5G TRONIC 1997?

250 km/h, Electronically limited 155.34 mph

What is the engine size, Mercedes-Benz CLK (A208, facelift 1999) CLK 430 (279 Hp) 5G TRONIC 1997?

4266 cm3
260.33 cu. in.

How many cylinders, Mercedes-Benz CLK (A208, facelift 1999) CLK 430 (279 Hp) 5G TRONIC 1997?

8, V-engine

What is the drivetrain, Mercedes-Benz CLK (A208, facelift 1999) CLK 430 (279 Hp) 5G TRONIC 1997?

Rear wheel drive,

How long is this vehicle, Mercedes-Benz CLK (A208, facelift 1999) CLK 430 (279 Hp) 5G TRONIC 1997?

4567 mm
179.8 in.

How wide is the vehicle, Mercedes-Benz CLK (A208, facelift 1999) CLK 430 (279 Hp) 5G TRONIC 1997?

1722 mm
67.8 in.

What is the curb weight, Mercedes-Benz CLK (A208, facelift 1999) CLK 430 (279 Hp) 5G TRONIC 1997?

1755 kg
3869.11 lbs.

Mercedes-Benz CLK (Convertible) CLK (A208, facelift 1999) 1997,1998,1999,2000,2001,2002,2003 Specs

General information

Brand Mercedes-Benz
Model CLK (Convertible)
Version CLK (A208, facelift 1999)
Engine version CLK 430 (279 Hp) 5G TRONIC
Year production start 1997
Year production end 2003
Vehicle type Convertible
Horsepower RPM 279 Hp @ 5750 rpm.
Acceleration 0 - 100 kmh sec 7.4 sec
Curb weight kg -lbs total

1755 kg

3869.11 lbs.
Overall length mm - inch

4567 mm

179.8 in.
Doors 2
Top Speed 250 km/h, Electronically limited 155.34 mph

Engine specs

Designation model M 113 E 43 / 113.943
Cam configuration SOHC
Engine position and orientation Front, Longitudinal
Cylinders 8
Position of cylinders V-engine
Displacement (liters)

4266 cm3

260.33 cu. in.
Eng. horsepower RPM 279 Hp @ 5750 rpm.
Horsepower per litre 65.4 Hp/l
Weight / horsepower kg/hp - hp/tons

6.3 kg/Hp

159 Hp/tonne
Weight / torque kg/Nm - Nm/tons 4.4 kg/Nm, 227.9 Nm/tonne

4.4 kg/Nm

227.9 Nm/tonne
Torque Nm RPM lb-ft RPM

400 Nm @ 3000-4400 rpm.

295.02 lb.-ft. @ 3000-4400 rpm.
Bore (mm in)

89.9 mm

3.54 in.
Stroke (mm in)

84 mm

3.31 in.
Compression ratio 10
Fuel delivery system Multi-point indirect injection
Fuel type Petrol (Gasoline)
Valvetrain 4
Engine aspiration Naturally aspirated engine
Engine oil liters | quarts

8 l

8.45 US qt | 7.04 UK qt
Engine coolant

11 l

11.62 US qt | 9.68 UK qt
Powertrain architecture Internal Combustion engine
Engine location Front, Longitudinal

Transmission and Drive system

Drive configuration Rear wheel drive

Brakes

Front brakes Ventilated discs
Rear brakes Disc
Anti-lock brake system ABS (Anti-lock braking system)

Steering

Steering type Cone worm with recirculation balls
Turning diameter m - ft

10.70 m

35.1 ft.

Suspension

Front suspension Double wishbone, Transverse stabilizer
Rear suspension Independent, spring multi-link with stabilizer

Body / Chassis

Wheels & Tyres

Wheels size 205/55 R16
Wheels rims 7J x 16

Exterior

Interior

Safety and Security

Passenger

Passengers seats 4

Dimensions

Overall length mm - inch

4567 mm

179.8 in.
Overall width mm -inch

1722 mm

67.8 in.
Overall height mm -inch

1382 mm

54.41 in.
Wheelbase mm - inch

2690 mm

105.91 in.
Track width front mm - inch

1505 mm

59.25 in.
Track width rear mm - inch

1474 mm

58.03 in.

Weights

Curb weight kg -lbs total

1755 kg

3869.11 lbs.
Gross weight kg -lbs total

2080 kg

4585.62 lbs.
Capacities kg - lbs

325 kg

716.5 lbs.
Fuel tank liters | gallons

62 l

16.38 US gal | 13.64 UK gal

Fuel economy

City l/100km - mpg

17.7 l/100 km

13.29 US mpg
Highway l/100 km - mpg

9 l/100 km

26.13 US mpg
Combined l/100 km - Mpg

12.2 l/100 km

19.28 US mpg
Autonomy km (combined use) 517

Engine type

8 CYLINDER V-Engine
It's an engine with eight cylinder piston where the cylinders share a common crankshaft and are arranged in a V configuration.

What is the 8 cylinder V-engine displacement: it is in a range between 2926 cc and 8135 cc in recent model line up powertrain.

How much is the power of the 8 cylinder V-engine: the power of the 8 cylinder V-engine is in a range from 125 bhp to 1160 bhp.

Which cars use 8 cylinder V-engine: in recent years several manufactures have been used the V8 engine for 3 main applications: premium, sport cars and lightweight trucks. 8 V engine is the American preferred engine for iconic giant pick-up.

What is the eight cylinder V angle: the majority of V8 engines use a V-angle of 90 degrees. This angle results in good engine balance and low vibrations. The downside is a larger powertrain body that makes the use of this configuration suitable only for longitudinal position and rear drive wheels traction.

V8 engines with a 60 degree V-angle were used in the 1996-1999 by Ford and in 2005-2011 by Volvo. The Ford engine used a 60 degree V-angle because it was based on a V6 engine with a 60 degree V-angle. Both the Ford and Volvo engines were used in transverse engine chassis, which were designed for a front-wheel-drive layout. To reduce the vibrations caused by the unbalanced 60 degree V-angle, Volvo's used a balance shaft and offset split crankpins.

The Rolls-Royce Meteorite tank engine also used a 60 degree V-angle, since it was derived from the 60 degree V12 Rolls-Royce Meteor which in turn was based on the famous Rolls-Royce Merlin V12 engine.

Most V8 engines fitted to road cars use a cross-plane crankshaft, since this configuration produces less vibration due to the perfect primary balance and secondary balance.

The rumbling exhaust sound produced by a typical cross-plane V8 engine is partly due to the uneven firing order within each of the two banks of four cylinders and with separate exhaust systems for each bank of cylinders, this uneven pulsing creates the legendary rumbling sound that is typically of V8 engines.
