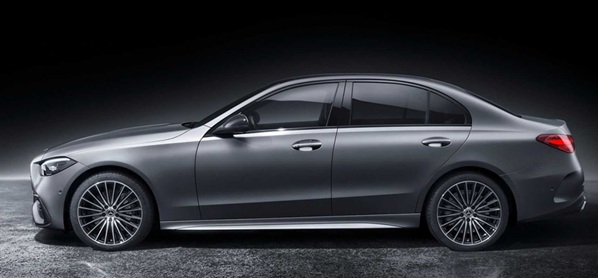

Mercedes-Benz C-class (Sedan) C-class (W206) 2021,2022,2023,2024,2025 Specs
General information
| Brand |
Mercedes-Benz |
| Model |
C-class (Sedan) |
| Version |
C-class (W206) |
| Engine version |
C 300 d EQ Boost (265 Hp) 9G-TRONIC |
| Year production start |
2021 |
| Vehicle type |
Sedan |
| Horsepower RPM |
265 Hp @ 4200 rpm. |
| Acceleration 0 - 100 kmh sec |
5.7 sec |
| Curb weight kg -lbs total |
1700 kg
3747.86 lbs.
|
| Overall length mm - inch |
4751 mm
187.05 in.
|
| Doors |
4 |
| Top Speed |
250 km/h, Electronically limited 155.34 mph |
Engine specs
| Designation model |
OM 654 M |
| Cam configuration |
DOHC
|
| Engine position and orientation |
Electric motor, integrated into transmission |
| Cylinders |
4 |
| Position of cylinders |
Inline |
| Displacement (liters) |
1992 cm3
121.56 cu. in.
|
| Eng. horsepower RPM |
265 Hp @ 4200 rpm.
|
| Horsepower per litre |
133 Hp/l
|
| Weight / horsepower kg/hp - hp/tons |
6.4 kg/Hp
155.9 Hp/tonne
|
| Weight / torque kg/Nm - Nm/tons |
3.1 kg/Nm, 323.5 Nm/tonne
3.1 kg/Nm
323.5 Nm/tonne
|
| Torque Nm RPM lb-ft RPM |
550 Nm @ 1800-2200 rpm.
405.66 lb.-ft. @ 1800-2200 rpm.
|
| Bore (mm in) |
82 mm
3.23 in.
|
| Stroke (mm in) |
94.3 mm
3.71 in.
|
| Fuel delivery system |
Diesel Commonrail |
| Fuel type |
Diesel |
| Valvetrain |
4 |
| Engine aspiration |
BiTurbo, Intercooler |
| Emission certification |
Euro 6d-ISC-FCM
|
| Powertrain architecture |
MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV) |
| Electric motor power |
20 Hp
|
| Electric motor torque |
200 Nm 147.51 lb.-ft.
|
| Engine location |
Electric motor, integrated into transmission
|
Transmission and Drive system
| Drive configuration |
Rear wheel drive
|
Brakes
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
| Turning diameter m - ft |
10.64 m
34.91 ft.
|
Suspension
| Front suspension |
Independent multi-link |
| Rear suspension |
Independent multi-link |
Wheels & Tyres
| Wheels size |
Front wheel tires: 225/50 R17; 225/45 R18
|
| Wheels rims |
Front wheel rims: 7J x 17; 7.5J x 18 |
Passenger
| Passengers seats |
5 |
| Trunk space min liter | cu. Ft. |
455 l
16.07 cu. ft.
|
Dimensions
| Overall length mm - inch |
4751 mm
187.05 in.
|
| Overall width mm -inch |
1820 mm
71.65 in.
|
| Overall height mm -inch |
1437 mm
56.57 in.
|
| Wheelbase mm - inch |
2865 mm
112.8 in.
|
| Track width front mm - inch |
1582-1601 mm
62.28 - 63.03 in.
|
| Track width rear mm - inch |
1594-1613 mm
62.76 - 63.5 in.
|
| Coefficient of drag |
0.24
|
Weights
| Curb weight kg -lbs total |
1700 kg
3747.86 lbs.
|
| Gross weight kg -lbs total |
2380 kg
5247 lbs.
|
| Capacities kg - lbs |
680 kg
1499.14 lbs.
|
| Fuel tank liters | gallons |
50 l
13.21 US gal | 11 UK gal
|
Fuel economy
| Urban (NEDC) l/100 km - Mpg |
6.8-7.1 l/100 km
34.59 - 33.13 US mpg
|
| Extra urban (NEDC) l/100 km - Mpg |
3.9-4.2 l/100 km
60.31 - 56 US mpg
|
| Combined (NEDC) l/100 km - Mpg |
5-5.3 l/100 km
47.04 - 44.38 US mpg
|
| Autonomy km (combined use) NEDC |
1?118918677 |
| Combined fuel consumption (WLTP) |
5-5.6 l/100 km 47.04 - 42 US mpg |
Engine type
4 CYLINDER INLINE
