Key specs

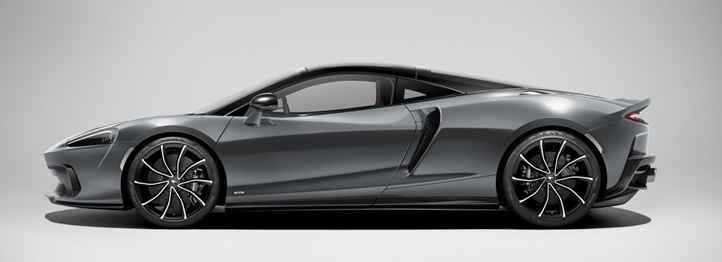

McLaren GTS (Coupe) GTS 2023,2024,2025
What is the body type, McLaren GTS 4.0 V8 (635 Hp) SSG 2023?
Coupe, 2 Doors, 2 Seats
How much power, McLaren GTS 4.0 V8 (635 Hp) SSG 2023?
635 Hp @ 7500 rpm.
159 Hp/l
How fast is the car, McLaren GTS 4.0 V8 (635 Hp) SSG 2023?
326 km/h 202.57 mph
What is the engine size, McLaren GTS 4.0 V8 (635 Hp) SSG 2023?
3994 cm3
243.73 cu. in.
How many cylinders, McLaren GTS 4.0 V8 (635 Hp) SSG 2023?
8,
V-engine
What is the drivetrain, McLaren GTS 4.0 V8 (635 Hp) SSG 2023?
Rear wheel drive,
How long is this vehicle, McLaren GTS 4.0 V8 (635 Hp) SSG 2023?
4683 mm
184.37 in.
How wide is the vehicle, McLaren GTS 4.0 V8 (635 Hp) SSG 2023?
#N/D
What is the curb weight, McLaren GTS 4.0 V8 (635 Hp) SSG 2023?
1520 kg
3351.03 lbs.
McLaren GTS (Coupe) GTS 2023,2024,2025 Specs
General information
| Brand |
McLaren |
| Model |
GTS (Coupe) |
| Version |
GTS |
| Engine version |
4.0 V8 (635 Hp) SSG |
| Year production start |
2023 |
| Vehicle type |
Coupe |
| Horsepower RPM |
635 Hp @ 7500 rpm. |
| Acceleration 0 - 100 kmh sec |
3.2 sec |
| Curb weight kg -lbs total |
1520 kg
3351.03 lbs.
|
| Overall length mm - inch |
4683 mm
184.37 in.
|
| Doors |
2 |
| Top Speed |
326 km/h 202.57 mph |
Engine specs
| Designation model |
M840TE |
| Cam configuration |
DOHC, VVT
|
| Engine position and orientation |
Middle, Longitudinal |
| Cylinders |
8 |
| Position of cylinders |
V-engine |
| Displacement (liters) |
3994 cm3
243.73 cu. in.
|
| Eng. horsepower RPM |
635 Hp @ 7500 rpm.
|
| Horsepower per litre |
159 Hp/l
|
| Weight / horsepower kg/hp - hp/tons |
2.4 kg/Hp
417.8 Hp/tonne
|
| Weight / torque kg/Nm - Nm/tons |
2.4 kg/Nm, 414.5 Nm/tonne
2.4 kg/Nm
414.5 Nm/tonne
|
| Torque Nm RPM lb-ft RPM |
630 Nm @ 5500-6500 rpm.
464.66 lb.-ft. @ 5500-6500 rpm.
|
| Fuel delivery system |
Direct injection |
| Fuel type |
Petrol (Gasoline) |
| Valvetrain |
4 |
| Engine aspiration |
Twin-Turbo, Intercooler |
| Engine oil liters | quarts |
8 l
8.45 US qt | 7.04 UK qt
|
| Engine coolant |
24.5 l
25.89 US qt | 21.56 UK qt
|
| Powertrain architecture |
Internal Combustion engine |
Transmission and Drive system
| Drive configuration |
Rear wheel drive
|
Brakes
| Front brakes |
Ventilated discs, 390 mm |
| Rear brakes |
Ventilated discs, 380 mm |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
Suspension
| Front suspension |
Double wishbone |
| Rear suspension |
Double wishbone |
Wheels & Tyres
| Wheels size |
Front wheel tires: 225/35 R20
|
| Wheels rims |
Front wheel rims: 8J x 20 |
Passenger
| Passengers seats |
2 |
| Trunk space max liter | cu. Ft. |
570 l
20.13 cu. ft.
|
Dimensions
| Overall length mm - inch |
4683 mm
184.37 in.
|
| Overall height mm -inch |
1213 mm
47.76 in.
|
| Wheelbase mm - inch |
2675 mm
105.31 in.
|
| Track width front mm - inch |
1663 mm
65.47 in.
|
| Track width rear mm - inch |
1617 mm
63.66 in.
|
Weights
| Curb weight kg -lbs total |
1520 kg
3351.03 lbs.
|
| Fuel tank liters | gallons |
72 l
19.02 US gal | 15.84 UK gal
|
Fuel economy
| Combined fuel consumption (WLTP) |
11.9 l/100 km 19.77 US mpg |
Engine type
8 CYLINDER V-Engine
