Off-road vehicle, 5 Doors, 5 Seats
10.4 l/100 km 22.62 US mpg
14 l/100 km 16.8 US mpg
8.4 l/100 km 28 US mpg
260 Hp @ 5500 rpm.
115 Hp/l
211 km/h 131.11 mph
2261 cm3
137.97 cu. in.
4, Inline
Front wheel drive,
4700 mm
185.04 in.
1870 mm
73.62 in.
1740 kg
3836.04 lbs.

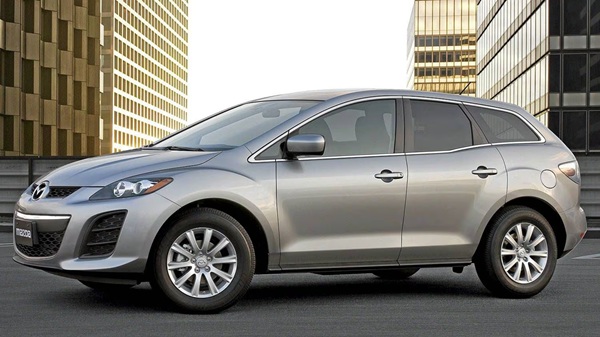

| Brand | Mazda |
|---|---|
| Model | CX-7 (Off-road vehicle) |
| Version | CX-7 |
| Engine version | 2.3 DiSi Turbo (260 Hp) |
| Year production start | 2007 |
| Year production end | 2012 |
| Vehicle type | Off-road vehicle |
| Horsepower RPM | 260 Hp @ 5500 rpm. |
| Acceleration 0 - 100 kmh sec | 8.2 sec |
| Curb weight kg -lbs total |
1740 kg3836.04 lbs. |
| Overall length mm - inch |
4700 mm185.04 in. |
| Doors | 5 |
| Top Speed | 211 km/h 131.11 mph |
| Cam configuration | DOHC |
|---|---|
| Engine position and orientation | Front, Transverse |
| Cylinders | 4 |
| Position of cylinders | Inline |
| Displacement (liters) |
2261 cm3137.97 cu. in. |
| Eng. horsepower RPM | 260 Hp @ 5500 rpm. |
| Horsepower per litre | 115 Hp/l |
| Weight / horsepower kg/hp - hp/tons |
6.7 kg/Hp149.4 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 4.6 kg/Nm, 218.4 Nm/tonne
4.6 kg/Nm218.4 Nm/tonne |
| Torque Nm RPM lb-ft RPM |
380 Nm @ 3000 rpm.280.27 lb.-ft. @ 3000 rpm. |
| Bore (mm in) |
87.5 mm3.44 in. |
| Stroke (mm in) |
94 mm3.7 in. |
| Compression ratio | 9.5 |
| Fuel delivery system | Multi-point indirect injection |
| Fuel type | Petrol (Gasoline) |
| Valvetrain | 4 |
| Engine aspiration | Turbocharger |
| Emission certification | Euro 5 |
| Powertrain architecture | Internal Combustion engine |
| Engine location | Front, Transverse |
| Drive configuration | Front wheel drive |
|---|---|
| Transmission | 6 |
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Ventilated discs |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
|---|---|
| Turning diameter m - ft |
15.8 m51.84 ft. |
| Front suspension | Independent type McPherson |
|---|---|
| Rear suspension | Coil spring |
| Wheels size | 235/55 R19 |
|---|---|
| Wheels rims | 7.5J x 19 |
| Passengers seats | 5 |
|---|---|
| Trunk space min liter | cu. Ft. |
455 l16.07 cu. ft. |
| Trunk space max liter | cu. Ft. |
774 l27.33 cu. ft. |
| Overall length mm - inch |
4700 mm185.04 in. |
|---|---|
| Overall width mm -inch |
1870 mm73.62 in. |
| Overall height mm -inch |
1645 mm64.76 in. |
| Wheelbase mm - inch |
2750 mm108.27 in. |
| Track width front mm - inch |
1615 mm63.58 in. |
| Track width rear mm - inch |
1610 mm63.39 in. |
| Curb weight kg -lbs total |
1740 kg3836.04 lbs. |
|---|---|
| Gross weight kg -lbs total |
2301 kg5072.84 lbs. |
| Capacities kg - lbs |
561 kg1236.79 lbs. |
| Fuel tank liters | gallons |
69 l18.23 US gal | 15.18 UK gal |
| City l/100km - mpg |
14 l/100 km16.8 US mpg |
|---|---|
| Highway l/100 km - mpg |
8.4 l/100 km28 US mpg |
| Combined l/100 km - Mpg |
10.4 l/100 km22.62 US mpg |
| Autonomy km (combined use) | 690 |
4 CYLINDER INLINE
