Key specs

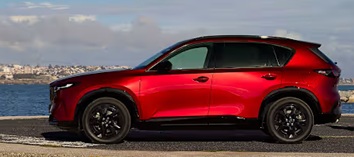

Mazda CX-5 (SUV) CX-5 II (facelift 2021) 2021,2022,2023,2024,2025
What is the body type, Mazda CX-5 II (facelift 2021) 2.5 SKYACTIV-G Turbo (227 Hp) AWD Automatic 2021?
SUV, 5 Doors, 5 Seats
What is the fuel economy, Mazda CX-5 II (facelift 2021) 2.5 SKYACTIV-G Turbo (227 Hp) AWD Automatic 2021?
10.7 l/100 km 21.98 US mpg
8.7 l/100 km 27.04 US mpg
How much power, Mazda CX-5 II (facelift 2021) 2.5 SKYACTIV-G Turbo (227 Hp) AWD Automatic 2021?
227 Hp @ 5000 rpm.
91.2 Hp/l
What is the engine size, Mazda CX-5 II (facelift 2021) 2.5 SKYACTIV-G Turbo (227 Hp) AWD Automatic 2021?
2488 cm3
151.83 cu. in.
How many cylinders, Mazda CX-5 II (facelift 2021) 2.5 SKYACTIV-G Turbo (227 Hp) AWD Automatic 2021?
4,
Inline
What is the drivetrain, Mazda CX-5 II (facelift 2021) 2.5 SKYACTIV-G Turbo (227 Hp) AWD Automatic 2021?
All wheel drive (4x4),
How long is this vehicle, Mazda CX-5 II (facelift 2021) 2.5 SKYACTIV-G Turbo (227 Hp) AWD Automatic 2021?
4575 mm
180.12 in.
How wide is the vehicle, Mazda CX-5 II (facelift 2021) 2.5 SKYACTIV-G Turbo (227 Hp) AWD Automatic 2021?
1844 mm
72.6 in.
What is the curb weight, Mazda CX-5 II (facelift 2021) 2.5 SKYACTIV-G Turbo (227 Hp) AWD Automatic 2021?
1749 kg
3855.88 lbs.
Mazda CX-5 (SUV) CX-5 II (facelift 2021) 2021,2022,2023,2024,2025 Specs
General information
| Brand |
Mazda |
| Model |
CX-5 (SUV) |
| Version |
CX-5 II (facelift 2021) |
| Engine version |
2.5 SKYACTIV-G Turbo (227 Hp) AWD Automatic |
| Year production start |
2021 |
| Vehicle type |
SUV |
| Horsepower RPM |
227 Hp @ 5000 rpm. |
| Curb weight kg -lbs total |
1749 kg
3855.88 lbs.
|
| Overall length mm - inch |
4575 mm
180.12 in.
|
| Doors |
5 |
Engine specs
| Designation model |
PY |
| Cam configuration |
DOHC, VVT
|
| Engine position and orientation |
Front, Transverse |
| Cylinders |
4 |
| Position of cylinders |
Inline |
| Displacement (liters) |
2488 cm3
151.83 cu. in.
|
| Eng. horsepower RPM |
227 Hp @ 5000 rpm.
|
| Horsepower per litre |
91.2 Hp/l
|
| Weight / horsepower kg/hp - hp/tons |
7.7 kg/Hp
129.8 Hp/tonne
|
| Weight / torque kg/Nm - Nm/tons |
4.2 kg/Nm, 240.1 Nm/tonne
4.2 kg/Nm
240.1 Nm/tonne
|
| Torque Nm RPM lb-ft RPM |
420 Nm @ 2000 rpm.
309.78 lb.-ft. @ 2000 rpm.
|
| Bore (mm in) |
89 mm
3.5 in.
|
| Stroke (mm in) |
100 mm
3.94 in.
|
| Compression ratio |
10.5 |
| Fuel delivery system |
Direct injection |
| Fuel type |
Petrol (Gasoline) |
| Valvetrain |
4 |
| Engine aspiration |
Turbocharger |
| Engine oil liters | quarts |
4.8 l
5.07 US qt | 4.22 UK qt
|
| Engine coolant |
8.5 l
8.98 US qt | 7.48 UK qt
|
| Emission certification |
T3B70; ULEV70
|
| Powertrain architecture |
Internal Combustion engine |
| Engine location |
Front, Transverse
|
Transmission and Drive system
| Drive configuration |
All wheel drive (4x4)
|
Brakes
| Front brakes |
Ventilated discs, 320.04 mm |
| Rear brakes |
Disc, 302.26 mm |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
| Turning diameter m - ft |
11 m
36.09 ft.
|
Suspension
| Front suspension |
Independent, Spring McPherson, with stabilizer |
| Rear suspension |
Independent, spring multi-link with stabilizer |
Wheels & Tyres
| Wheels size |
225/55 R19
|
| Wheels rims |
7J x 19 |
Passenger
| Passengers seats |
5 |
| Trunk space min liter | cu. Ft. |
824-872 l
29.1 - 30.79 cu. ft.
|
| Trunk space max liter | cu. Ft. |
1679 l
59.29 cu. ft.
|
Dimensions
| Overall length mm - inch |
4575 mm
180.12 in.
|
| Overall width mm -inch |
1844 mm
72.6 in.
|
| Overall height mm -inch |
1684 mm
66.3 in.
|
| Wheelbase mm - inch |
2697 mm
106.18 in.
|
| Track width front mm - inch |
1595 mm
62.8 in.
|
| Track width rear mm - inch |
1595 mm
62.8 in.
|
Weights
| Curb weight kg -lbs total |
1749 kg
3855.88 lbs.
|
| Fuel tank liters | gallons |
58 l
15.32 US gal | 12.76 UK gal
|
Fuel economy
| City l/100km - mpg |
10.7 l/100 km
21.98 US mpg
|
| Highway l/100 km - mpg |
8.7 l/100 km
27.04 US mpg
|
Engine type
4 CYLINDER INLINE
