SUV, 5 Doors, 5 Seats
7.3 l/100 km 32.22 US mpg
192 Hp @ 6100 rpm.
77.2 Hp/l
198 km/h 123.03 mph
2488 cm3
151.83 cu. in.
4, Inline
All wheel drive (4x4),
4633 mm
182.4 in.
1840 mm
72.44 in.
1545 kg
3406.14 lbs.
| Brand | Mazda |
|---|---|

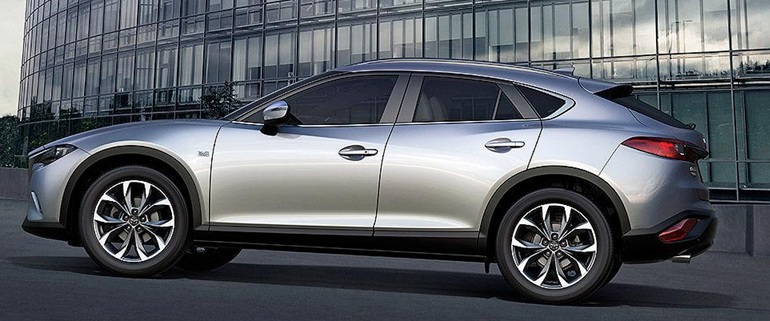

| Model | CX-4 (SUV) |
| Version | CX-4 |
| Engine version | 2.5 SKYACTIV-G (192 Hp) 4x4 Automatic |
| Year production start | 2016 |
| Vehicle type | SUV |
| Horsepower RPM | 192 Hp @ 6100 rpm. |
| Curb weight kg -lbs total |
1545 kg3406.14 lbs. |
| Overall length mm - inch |
4633 mm182.4 in. |
| Doors | 5 |
| Top Speed | 198 km/h 123.03 mph |
| Cam configuration | DOHC |
|---|---|
| Engine position and orientation | Front, Transverse |
| Cylinders | 4 |
| Position of cylinders | Inline |
| Displacement (liters) |
2488 cm3151.83 cu. in. |
| Eng. horsepower RPM | 192 Hp @ 6100 rpm. |
| Horsepower per litre | 77.2 Hp/l |
| Weight / horsepower kg/hp - hp/tons |
8 kg/Hp124.3 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 6.1 kg/Nm, 163.1 Nm/tonne
6.1 kg/Nm163.1 Nm/tonne |
| Torque Nm RPM lb-ft RPM |
252 Nm @ 4000 rpm.185.87 lb.-ft. @ 4000 rpm. |
| Bore (mm in) |
89 mm3.5 in. |
| Stroke (mm in) |
100 mm3.94 in. |
| Compression ratio | 13 |
| Fuel delivery system | Direct injection |
| Fuel type | Petrol (Gasoline) |
| Valvetrain | 4 |
| Engine aspiration | Naturally aspirated engine |
| Emission certification | Euro 6 |
| Powertrain architecture | Internal Combustion engine |
| Engine location | Front, Transverse |
| Drive configuration | All wheel drive (4x4) |
|---|
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Disc |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
|---|---|
| Turning diameter m - ft |
11.2 m36.75 ft. |
| Front suspension | Independent, Spring McPherson, with stabilizer |
|---|---|
| Rear suspension | Multi-link independent |
| Wheels size | 225/55 R19 |
|---|---|
| Wheels rims | 19 |
| Passengers seats | 5 |
|---|
| Overall length mm - inch |
4633 mm182.4 in. |
|---|---|
| Overall width mm -inch |
1840 mm72.44 in. |
| Overall height mm -inch |
1535 mm60.43 in. |
| Wheelbase mm - inch |
2700 mm106.3 in. |
| Track width front mm - inch |
1584 mm62.36 in. |
| Track width rear mm - inch |
1587 mm62.48 in. |
| Coefficient of drag | 0.33 |
| Curb weight kg -lbs total |
1545 kg3406.14 lbs. |
|---|---|
| Fuel tank liters | gallons |
51 l13.47 US gal | 11.22 UK gal |
| Combined l/100 km - Mpg |
7.3 l/100 km32.22 US mpg |
|---|---|
| Autonomy km (combined use) | 699 |
4 CYLINDER INLINE
