Suv, 5 Doors, 5 Seats
WLTP 1.2 l/100 km
180 Hp @ 5500 rom.
122 Hp/l
210 km/h 130.5 mph
1477 cm3
90.13 cu. in.
3, Inline
Front wheel drive,
4541 mm
178.77 in.
1952 mm
76.85 in.
1879 kg
4142.48 lbs.

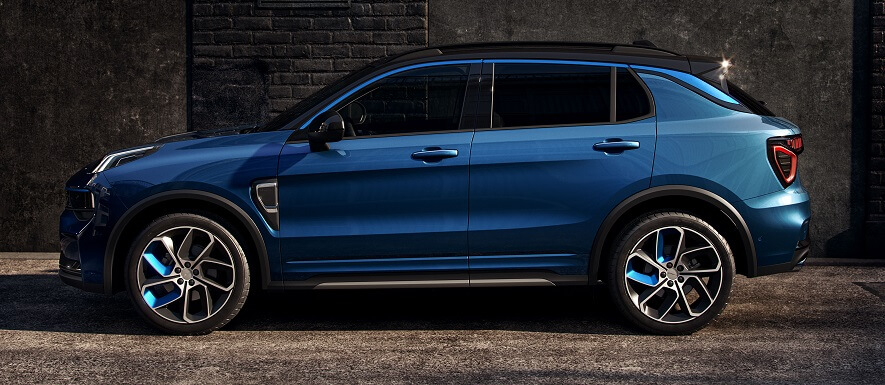

| Brand | Lynk & Co |
|---|---|
| Model | 01 Phev (Suv) |
| Version | 01 Phev Obc 6.6 |
| Engine version | 1.5 TD (180 Hp) |
| Year production start | 2022 |
| Vehicle type | Suv |
| Horsepower RPM | 180 Hp @ 5500 rpm. |
| Acceleration 0 - 100 kmh sec | 8 sec |
| Curb weight kg -lbs total |
1879 kg4142.48 lbs. |
| Overall length mm - inch |
4541 mm178.77 in. |
| Doors | 5 |
| Top Speed | 210 km/h 130.5 mph |
| Cam configuration | DOHC |
|---|---|
| Engine position and orientation | Front, Transverse |
| Cylinders | 3 |
| Position of cylinders | Inline |
| Block/Head composition | Aluminium |
| Displacement (liters) |
1477 cm390.13 cu. in. |
| Eng. horsepower RPM | 180 Hp @ 5500 rom. |
| Horsepower per litre | 122 Hp/l |
| Weight / horsepower kg/hp - hp/tons |
10.4 kg/Hp96 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 7.1 kg/Nm, 141 Nm/tonne
7.1 kg/Nm141 Nm/tonne |
| Torque Nm RPM lb-ft RPM |
265 Nm @ 1500-4000 rpm.195.44 lb.-ft. @ 1500-4000 rpm. |
| Bore (mm in) |
82 mm3.22 in. |
| Stroke (mm in) |
93.2 mm3.67 in. |
| Compression ratio | 11.5 |
| Fuel delivery system | Direct injection |
| Fuel type | Petrol (Gasoline) |
| Valvetrain | 4 |
| Engine aspiration | Turbocharged |
| Recommended fuel | 95-98 Ron |
| Emission certification | WLTP CO2 27 g/km |
| Battery | Lithium-ion |
| Powertrain architecture | Internal Combustion engine |
| Electric motor power | 90 Hp 60 kW |
| Electric motor torque | 160 Nm |
| Engine location | Front, Transverse |
| Total available power | 270 Hp 192 kW |
| Totale available torque | 425 Nm |
| Drive configuration | Front wheel drive |
|---|---|
| Transmission | Automatic 7 DCTH |
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Disc |
| Brake control | Disc |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Brake assist | EBD + EBA |
| Steering type | Steering rack and pinion |
|---|---|
| Turning diameter m - ft |
11.4 m38 ft |
| Front suspension | Independent type McPherson |
|---|---|
| Rear suspension | Independent multi-link |
| Wheels size | 235/45 R20 |
|---|---|
| Wheels rims | 8.5J x20 |
| Passengers seats | 5 |
|---|---|
| Head room front | 974 mm |
| Head room rear | 988 mm |
| Leg room front | 1044 mm |
| Leg room rear | 999 mm |
| Hip room front | 1391 mm |
| Hip room rear | 1185 mm |
| Trunk space max liter | cu. Ft. | 1213 liter |
| Overall length mm - inch |
4541 mm178.77 in. |
|---|---|
| Overall width mm -inch |
1952 mm76.85 in. |
| Overall height mm -inch |
1694 mm66.69 in. |
| Wheelbase mm - inch |
2734 mm107.64 in. |
| Dimensions-168 | ground clearance 213mm |
| Dimensions-169 | approach angle 19.4 degrees |
| Dimensions-170 | departure angle 26.4 degrees |
| Curb weight kg -lbs total |
1879 kg4142.48 lbs. |
|---|---|
| Gross weight kg -lbs total |
2350 kg5180.86 lbs. |
| Weights-178 | towing capacity 1800 kg braked |
| Combined l/100 km - Mpg | WLTP 1.2 l/100 km |
|---|
