Convertible, 2 Doors, 2 Seats
8.9 l/100 km 26.43 US mpg
158 Hp @ 6000 rpm.
99.5 Hp/l
220 km/h 136.7 mph
1588 cm3
96.91 cu. in.
4, Inline
Front wheel drive,
3803 mm
149.72 in.
1734 mm
68.27 in.
1020 kg
2248.72 lbs.
| Brand | Lotus |
|---|---|

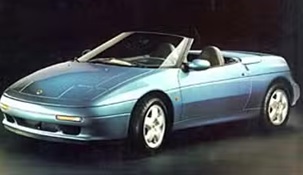

| Model | Elan (Convertible) |
| Version | Elan II (M100) |
| Engine version | 1.6 i 16V S2 (158 Hp) |
| Year production start | 1994 |
| Year production end | 1996 |
| Vehicle type | Convertible |
| Horsepower RPM | 158 Hp @ 6000 rpm. |
| Acceleration 0 - 100 kmh sec | 7.2 sec |
| Curb weight kg -lbs total |
1020 kg2248.72 lbs. |
| Overall length mm - inch |
3803 mm149.72 in. |
| Doors | 2 |
| Top Speed | 220 km/h 136.7 mph |
| Cam configuration | DOHC |
|---|---|
| Engine position and orientation | Front, Transverse |
| Cylinders | 4 |
| Position of cylinders | Inline |
| Displacement (liters) |
1588 cm396.91 cu. in. |
| Eng. horsepower RPM | 158 Hp @ 6000 rpm. |
| Horsepower per litre | 99.5 Hp/l |
| Weight / horsepower kg/hp - hp/tons |
6.5 kg/Hp154.9 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 5.2 kg/Nm, 194.1 Nm/tonne
5.2 kg/Nm194.1 Nm/tonne |
| Torque Nm RPM lb-ft RPM |
198 Nm @ 4200 rpm.146.04 lb.-ft. @ 4200 rpm. |
| Bore (mm in) |
80 mm3.15 in. |
| Stroke (mm in) |
79 mm3.11 in. |
| Compression ratio | 8.2 |
| Fuel delivery system | Multi-point indirect injection |
| Fuel type | Petrol (Gasoline) |
| Valvetrain | 4 |
| Engine aspiration | Turbocharger |
| Powertrain architecture | Internal Combustion engine |
| Engine location | Front, Transverse |
| Drive configuration | Front wheel drive |
|---|---|
| Transmission | 5 |
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Disc |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
|---|
| Front suspension | Coil spring |
|---|---|
| Rear suspension | Helical spring |
| Wheels size | 205/45 R16 |
|---|---|
| Wheels rims | 16 |
| Passengers seats | 2 |
|---|---|
| Trunk space min liter | cu. Ft. |
185 l6.53 cu. ft. |
| Overall length mm - inch |
3803 mm149.72 in. |
|---|---|
| Overall width mm -inch |
1734 mm68.27 in. |
| Overall height mm -inch |
1240 mm48.82 in. |
| Wheelbase mm - inch |
2250 mm88.58 in. |
| Track width front mm - inch |
1486 mm58.5 in. |
| Track width rear mm - inch |
1486 mm58.5 in. |
| Curb weight kg -lbs total |
1020 kg2248.72 lbs. |
|---|---|
| Gross weight kg -lbs total |
1270 kg2799.87 lbs. |
| Capacities kg - lbs |
250 kg551.16 lbs. |
| Fuel tank liters | gallons |
46 l12.15 US gal | 10.12 UK gal |
| Combined l/100 km - Mpg |
8.9 l/100 km26.43 US mpg |
|---|---|
| Autonomy km (combined use) | 517 |
