Key specs

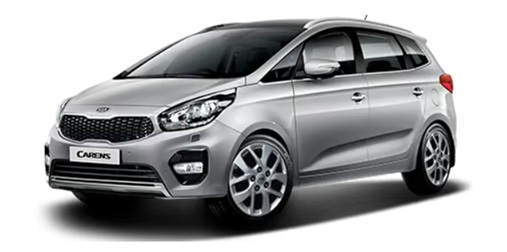

KIA Carens (MPV) Carens III (facelift 2016) 2016,2017,2018,2019
What is the body type, Kia Carens III (facelift 2016) 2.0 GDI (166 Hp) Automatic 7 Seat 2016?
MPV, 5 Doors, 7 Seats
How much power, Kia Carens III (facelift 2016) 2.0 GDI (166 Hp) Automatic 7 Seat 2016?
166 Hp @ 6500 rpm.
83 Hp/l
How fast is the car, Kia Carens III (facelift 2016) 2.0 GDI (166 Hp) Automatic 7 Seat 2016?
198 km/h 123.03 mph
What is the engine size, Kia Carens III (facelift 2016) 2.0 GDI (166 Hp) Automatic 7 Seat 2016?
1999 cm3
121.99 cu. in.
How many cylinders, Kia Carens III (facelift 2016) 2.0 GDI (166 Hp) Automatic 7 Seat 2016?
4,
Inline
What is the drivetrain, Kia Carens III (facelift 2016) 2.0 GDI (166 Hp) Automatic 7 Seat 2016?
Front wheel drive,
How long is this vehicle, Kia Carens III (facelift 2016) 2.0 GDI (166 Hp) Automatic 7 Seat 2016?
4525 mm
178.15 in.
How wide is the vehicle, Kia Carens III (facelift 2016) 2.0 GDI (166 Hp) Automatic 7 Seat 2016?
1805 mm
71.06 in.
What is the curb weight, Kia Carens III (facelift 2016) 2.0 GDI (166 Hp) Automatic 7 Seat 2016?
1469-1589 kg
3238.59 - 3503.15 lbs.
KIA Carens (MPV) Carens III (facelift 2016) 2016,2017,2018,2019 Specs
General information
| Brand |
Kia |
| Model |
Carens (MPV) |
| Version |
Carens III (facelift 2016) |
| Engine version |
2.0 GDI (166 Hp) Automatic 7 Seat |
| Year production start |
2016 |
| Year production end |
2019 |
| Vehicle type |
MPV |
| Horsepower RPM |
166 Hp @ 6500 rpm. |
| Acceleration 0 - 100 kmh sec |
10.8 sec |
| Curb weight kg -lbs total |
1469-1589 kg
3238.59 - 3503.15 lbs.
|
| Overall length mm - inch |
4525 mm
178.15 in.
|
| Doors |
5 |
| Top Speed |
198 km/h 123.03 mph |
Engine specs
| Designation model |
G4NC |
| Engine position and orientation |
Front, Transverse |
| Cylinders |
4 |
| Position of cylinders |
Inline |
| Displacement (liters) |
1999 cm3
121.99 cu. in.
|
| Eng. horsepower RPM |
166 Hp @ 6500 rpm.
|
| Horsepower per litre |
83 Hp/l
|
| Weight / horsepower kg/hp - hp/tons |
8.8 kg/Hp
113 Hp/tonne
|
| Weight / torque kg/Nm - Nm/tons |
6.9 kg/Nm, 145 Nm/tonne
6.9 kg/Nm
145 Nm/tonne
|
| Torque Nm RPM lb-ft RPM |
213 Nm @ 4700 rpm.
157.1 lb.-ft. @ 4700 rpm.
|
| Bore (mm in) |
81 mm
3.19 in.
|
| Stroke (mm in) |
97 mm
3.82 in.
|
| Compression ratio |
11.5 |
| Fuel delivery system |
Direct injection |
| Fuel type |
Petrol (Gasoline) |
| Valvetrain |
4 |
| Engine aspiration |
Naturally aspirated engine |
| Emission certification |
Euro 6
|
| Powertrain architecture |
Internal Combustion engine |
| Engine location |
Front, Transverse
|
Transmission and Drive system
| Drive configuration |
Front wheel drive
|
Brakes
| Front brakes |
Ventilated discs, 300 mm |
| Rear brakes |
Disc, 284 mm |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
| Turning diameter m - ft |
11 m
36.09 ft.
|
Suspension
| Front suspension |
Independent, Spring McPherson, with stabilizer |
| Rear suspension |
Torsion |
Wheels & Tyres
| Wheels size |
205/55 R16 91V; 225/45 R17 91V; 225/45 R18 95V
|
| Wheels rims |
6.5J x 16 ET48.5; 7.0J x 17 ET50.5; 7.5J x 18 ET53.5 |
Passenger
| Passengers seats |
7 |
| Trunk space min liter | cu. Ft. |
103 l
3.64 cu. ft.
|
| Trunk space max liter | cu. Ft. |
1650 l
58.27 cu. ft.
|
| Roof load load kg lbs |
100 kg
220.46 lbs.
|
Dimensions
| Overall length mm - inch |
4525 mm
178.15 in.
|
| Overall width mm -inch |
1805 mm
71.06 in.
|
| Overall height mm -inch |
1610 mm
63.39 in.
|
| Wheelbase mm - inch |
2750 mm
108.27 in.
|
| Track width front mm - inch |
1563-1573 mm
61.54 - 61.93 in.
|
| Track width rear mm - inch |
1576-1586 mm
62.05 - 62.44 in.
|
Weights
| Curb weight kg -lbs total |
1469-1589 kg
3238.59 - 3503.15 lbs.
|
| Gross weight kg -lbs total |
2200 kg
4850.17 lbs.
|
| Capacities kg - lbs |
611-731 kg
1347.02 - 1611.58 lbs.
|
| Fuel tank liters | gallons |
58 l
15.32 US gal | 12.76 UK gal
|
Fuel economy
| Urban (NEDC) l/100 km - Mpg |
10.7 l/100 km
21.98 US mpg
|
| Extra urban (NEDC) l/100 km - Mpg |
6.2 l/100 km
37.94 US mpg
|
| Combined (NEDC) l/100 km - Mpg |
7.8 l/100 km
30.16 US mpg
|
| Autonomy km (combined use) NEDC |
743?5897436 |
Engine type
4 CYLINDER INLINE
