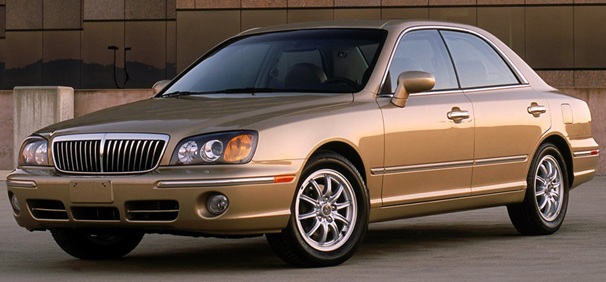

Hyundai XG 3.5 i V6 24V (197 Hp) 2002

Key specs

Hyundai XG (Sedan) XG 2002,2003,2004,2005

What is the body type, Hyundai XG 3.5 i V6 24V (197 Hp) 2002?

Sedan, 4 Doors, 5 Seats

What is the fuel economy, Hyundai XG 3.5 i V6 24V (197 Hp) 2002?

12 l/100 km 19.6 US mpg
17.7 l/100 km 13.29 US mpg
8.7 l/100 km 27.04 US mpg

How much power, Hyundai XG 3.5 i V6 24V (197 Hp) 2002?

197 Hp @ 5500 rpm.
56.3 Hp/l

How fast is the car, Hyundai XG 3.5 i V6 24V (197 Hp) 2002?

230 km/h 142.92 mph

What is the engine size, Hyundai XG 3.5 i V6 24V (197 Hp) 2002?

3497 cm3
213.4 cu. in.

How many cylinders, Hyundai XG 3.5 i V6 24V (197 Hp) 2002?

6, V-engine

What is the drivetrain, Hyundai XG 3.5 i V6 24V (197 Hp) 2002?

Front wheel drive,

How long is this vehicle, Hyundai XG 3.5 i V6 24V (197 Hp) 2002?

4865 mm
191.54 in.

How wide is the vehicle, Hyundai XG 3.5 i V6 24V (197 Hp) 2002?

1825 mm
71.85 in.

What is the curb weight, Hyundai XG 3.5 i V6 24V (197 Hp) 2002?

1795 kg
3957.3 lbs.

Hyundai XG (Sedan) XG 2002,2003,2004,2005 Specs

General information

Brand Hyundai
Model XG (Sedan)
Version XG
Engine version 3.5 i V6 24V (197 Hp)
Year production start 2002
Year production end 2005
Vehicle type Sedan
Horsepower RPM 197 Hp @ 5500 rpm.
Acceleration 0 - 100 kmh sec 8.6 sec
Curb weight kg -lbs total

1795 kg

3957.3 lbs.
Overall length mm - inch

4865 mm

191.54 in.
Doors 4
Top Speed 230 km/h 142.92 mph

Engine specs

Engine position and orientation Front, Transverse
Cylinders 6
Position of cylinders V-engine
Displacement (liters)

3497 cm3

213.4 cu. in.
Eng. horsepower RPM 197 Hp @ 5500 rpm.
Horsepower per litre 56.3 Hp/l
Weight / horsepower kg/hp - hp/tons

9.1 kg/Hp

109.7 Hp/tonne
Weight / torque kg/Nm - Nm/tons 6.1 kg/Nm, 162.7 Nm/tonne

6.1 kg/Nm

162.7 Nm/tonne
Torque Nm RPM lb-ft RPM

292 Nm @ 3500 rpm.

215.37 lb.-ft. @ 3500 rpm.
Bore (mm in)

93 mm

3.66 in.
Stroke (mm in)

85.8 mm

3.38 in.
Compression ratio 10
Fuel delivery system Multi-point indirect injection
Fuel type Petrol (Gasoline)
Valvetrain 4
Engine aspiration Naturally aspirated engine
Powertrain architecture Internal Combustion engine
Engine location Front, Transverse

Transmission and Drive system

Drive configuration Front wheel drive

Brakes

Front brakes Ventilated discs
Rear brakes Disc
Anti-lock brake system ABS (Anti-lock braking system)

Steering

Steering type Steering rack and pinion

Suspension

Front suspension Double wishbone
Rear suspension Helical spring

Body / Chassis

Wheels & Tyres

Wheels size 205/65 R16

Exterior

Interior

Safety and Security

Passenger

Passengers seats 5
Trunk space min liter | cu. Ft.

453 l

16 cu. ft.

Dimensions

Overall length mm - inch

4865 mm

191.54 in.
Overall width mm -inch

1825 mm

71.85 in.
Overall height mm -inch

1420 mm

55.91 in.
Wheelbase mm - inch

2750 mm

108.27 in.
Track width front mm - inch

1540 mm

60.63 in.
Track width rear mm - inch

1530 mm

60.24 in.

Weights

Curb weight kg -lbs total

1795 kg

3957.3 lbs.
Gross weight kg -lbs total

2230 kg

4916.31 lbs.
Capacities kg - lbs

435 kg

959.01 lbs.
Fuel tank liters | gallons

70 l

18.49 US gal | 15.4 UK gal

Fuel economy

City l/100km - mpg

17.7 l/100 km

13.29 US mpg
Highway l/100 km - mpg

8.7 l/100 km

27.04 US mpg
Combined l/100 km - Mpg

12 l/100 km

19.6 US mpg
Autonomy km (combined use) 583

Engine type

6 CYLINDER V-Engine
