MPV, 5 Doors, 7 Seats
13.4 l/100 km 17.55 US mpg
8.7 l/100 km 27.04 US mpg
139 Hp @ 6000 rpm.
70.4 Hp/l
170 km/h 105.63 mph
1975 cm3
120.52 cu. in.
4, Inline
All wheel drive (4x4),
4515 mm
177.76 in.
1695 mm
66.73 in.
1460 kg
3218.75 lbs.

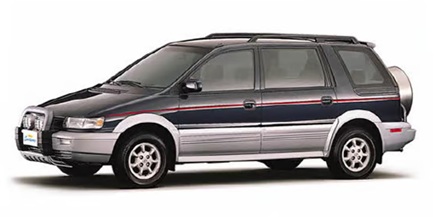

| Brand | Hyundai |
|---|---|
| Model | Santamo (MPV) |
| Version | Santamo |
| Engine version | 2.0 i 16V 4X4 (139 Hp) |
| Year production start | 1998 |
| Year production end | 2003 |
| Vehicle type | MPV |
| Horsepower RPM | 139 Hp @ 6000 rpm. |
| Acceleration 0 - 100 kmh sec | 14 sec |
| Curb weight kg -lbs total |
1460 kg3218.75 lbs. |
| Overall length mm - inch |
4515 mm177.76 in. |
| Doors | 5 |
| Top Speed | 170 km/h 105.63 mph |
| Designation model | G4CP |
|---|---|
| Cam configuration | DOHC |
| Engine position and orientation | Front, Transverse |
| Cylinders | 4 |
| Position of cylinders | Inline |
| Displacement (liters) |
1975 cm3120.52 cu. in. |
| Eng. horsepower RPM | 139 Hp @ 6000 rpm. |
| Horsepower per litre | 70.4 Hp/l |
| Weight / horsepower kg/hp - hp/tons |
10.5 kg/Hp95.2 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 8 kg/Nm, 124.7 Nm/tonne
8 kg/Nm124.7 Nm/tonne |
| Torque Nm RPM lb-ft RPM |
182 Nm @ 4900 rpm.134.24 lb.-ft. @ 4900 rpm. |
| Bore (mm in) |
82 mm3.23 in. |
| Stroke (mm in) |
93.5 mm3.68 in. |
| Compression ratio | 10.3 |
| Fuel delivery system | Multi-point indirect injection |
| Fuel type | Petrol (Gasoline) |
| Valvetrain | 4 |
| Engine aspiration | Naturally aspirated engine |
| Powertrain architecture | Internal Combustion engine |
| Engine location | Front, Transverse |
| Drive configuration | All wheel drive (4x4) |
|---|---|
| Transmission | 5 |
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Disc |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
|---|
| Front suspension | Spring Strut |
|---|---|
| Rear suspension | Helical spring |
| Wheels size | 195/70 R14 |
|---|
| Passengers seats | 7 |
|---|---|
| Trunk space min liter | cu. Ft. |
210 l7.42 cu. ft. |
| Trunk space max liter | cu. Ft. |
1715 l60.56 cu. ft. |
| Overall length mm - inch |
4515 mm177.76 in. |
|---|---|
| Overall width mm -inch |
1695 mm66.73 in. |
| Overall height mm -inch |
1580 mm62.2 in. |
| Wheelbase mm - inch |
2720 mm107.09 in. |
| Track width front mm - inch |
1455 mm57.28 in. |
| Track width rear mm - inch |
1460 mm57.48 in. |
| Curb weight kg -lbs total |
1460 kg3218.75 lbs. |
|---|---|
| Gross weight kg -lbs total |
2070 kg4563.57 lbs. |
| Capacities kg - lbs |
610 kg1344.82 lbs. |
| Fuel tank liters | gallons |
60 l15.85 US gal | 13.2 UK gal |
| City l/100km - mpg |
13.4 l/100 km17.55 US mpg |
|---|---|
| Highway l/100 km - mpg |
8.7 l/100 km27.04 US mpg |
