Key specs

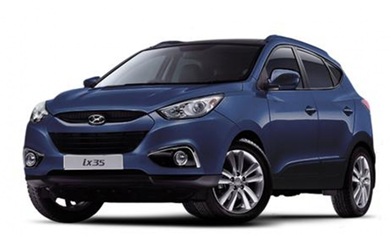

Hyundai ix35 (SUV) ix35 FCEV 2013,2014,2015,2016,2017,2018,2019,2020,2021,2022,2023,2024,2025
What is the body type, Hyundai ix35 FCEV (136 Hp) Fuel Cell Automatic 2013?
SUV, 5 Doors, 5 Seats
How fast is the car, Hyundai ix35 FCEV (136 Hp) Fuel Cell Automatic 2013?
160 km/h 99.42 mph
How many cylinders, Hyundai ix35 FCEV (136 Hp) Fuel Cell Automatic 2013?
Electric,
What is the drivetrain, Hyundai ix35 FCEV (136 Hp) Fuel Cell Automatic 2013?
Front wheel drive,
How long is this vehicle, Hyundai ix35 FCEV (136 Hp) Fuel Cell Automatic 2013?
4410 mm
173.62 in.
How wide is the vehicle, Hyundai ix35 FCEV (136 Hp) Fuel Cell Automatic 2013?
1820 mm
71.65 in.
What is the curb weight, Hyundai ix35 FCEV (136 Hp) Fuel Cell Automatic 2013?
1846 kg
4069.73 lbs.
Hyundai ix35 (SUV) ix35 FCEV 2013,2014,2015,2016,2017,2018,2019,2020,2021,2022,2023,2024,2025 Specs
General information
| Brand |
Hyundai |
| Model |
ix35 (SUV) |
| Version |
ix35 FCEV |
| Engine version |
(136 Hp) Fuel Cell Automatic |
| Year production start |
2013 |
| Vehicle type |
SUV |
| Acceleration 0 - 100 kmh sec |
12.5 sec |
| Curb weight kg -lbs total |
1846 kg
4069.73 lbs.
|
| Overall length mm - inch |
4410 mm
173.62 in.
|
| Doors |
5 |
| Top Speed |
160 km/h 99.42 mph |
Engine specs
| Cylinders |
Electric |
| Weight / horsepower kg/hp - hp/tons |
13.6 kg/Hp
73.7 Hp/tonne
|
| Fuel type |
Hydrogen |
| Powertrain architecture |
FCEV (Fuel Cell Electric Vehicle) |
| Electric motor power |
136 Hp @ 5000 rpm.
|
| Electric motor torque |
300 Nm @ 1000 rpm. 221.27 lb.-ft. @ 1000 rpm.
|
| Total available power |
136 Hp @ 5000 rpm.
|
Transmission and Drive system
| Drive configuration |
Front wheel drive
|
Brakes
| Front brakes |
Ventilated discs |
| Rear brakes |
Disc |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Turning diameter m - ft |
10.58 m
34.71 ft.
|
Wheels & Tyres
| Wheels size |
225/60 R17
|
| Wheels rims |
6.5J x 17 |
Passenger
| Passengers seats |
5 |
| Trunk space min liter | cu. Ft. |
465 l
16.42 cu. ft.
|
| Trunk space max liter | cu. Ft. |
1436 l
50.71 cu. ft.
|
Dimensions
| Overall length mm - inch |
4410 mm
173.62 in.
|
| Overall width mm -inch |
1820 mm
71.65 in.
|
| Overall height mm -inch |
1650 mm
64.96 in.
|
| Wheelbase mm - inch |
2640 mm
103.94 in.
|
| Track width front mm - inch |
1585 mm
62.4 in.
|
| Track width rear mm - inch |
1586 mm
62.44 in.
|
| Coefficient of drag |
0.35
|
Weights
| Curb weight kg -lbs total |
1846 kg
4069.73 lbs.
|
| Gross weight kg -lbs total |
2250 kg
4960.4 lbs.
|
| Capacities kg - lbs |
404 kg
890.67 lbs.
|
Engine type
Electric
