MPV, 5 Doors, 5 Seats
125 Hp @ 6300 rpm.
78.6 Hp/l
180 km/h 111.85 mph
1591 cm3
97.09 cu. in.
4, Inline
Front wheel drive,
4115 mm
162.01 in.
1765 mm
69.49 in.
1222 kg
2694.05 lbs.

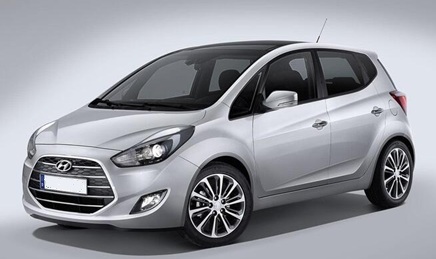

| Brand | Hyundai |
|---|---|
| Model | ix20 (MPV) |
| Version | ix20 (facelift 2015) |
| Engine version | 1.6i (125 Hp) Automatic |
| Year production start | 2015 |
| Vehicle type | MPV |
| Horsepower RPM | 125 Hp @ 6300 rpm. |
| Acceleration 0 - 100 kmh sec | 11.5 sec |
| Curb weight kg -lbs total |
1222 kg2694.05 lbs. |
| Overall length mm - inch |
4115 mm162.01 in. |
| Doors | 5 |
| Top Speed | 180 km/h 111.85 mph |
| Cam configuration | DOHC |
|---|---|
| Engine position and orientation | Front, Transverse |
| Cylinders | 4 |
| Position of cylinders | Inline |
| Displacement (liters) |
1591 cm397.09 cu. in. |
| Eng. horsepower RPM | 125 Hp @ 6300 rpm. |
| Horsepower per litre | 78.6 Hp/l |
| Weight / horsepower kg/hp - hp/tons |
9.8 kg/Hp102.3 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 7.8 kg/Nm, 127.7 Nm/tonne
7.8 kg/Nm127.7 Nm/tonne |
| Torque Nm RPM lb-ft RPM |
156 Nm @ 4200 rpm.115.06 lb.-ft. @ 4200 rpm. |
| Bore (mm in) |
77 mm3.03 in. |
| Stroke (mm in) |
85.44 mm3.36 in. |
| Compression ratio | 10.5 |
| Fuel delivery system | Multi-point indirect injection |
| Fuel type | Petrol (Gasoline) |
| Valvetrain | 4 |
| Engine aspiration | Naturally aspirated engine |
| Emission certification | Euro 6 |
| Powertrain architecture | Internal Combustion engine |
| Engine location | Front, Transverse |
| Drive configuration | Front wheel drive |
|---|
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Disc |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
|---|---|
| Turning diameter m - ft |
10.42 m34.19 ft. |
| Front suspension | Independent, Spring McPherson, with stabilizer |
|---|---|
| Rear suspension | Semi-independent, coil spring |
| Wheels size | 195/65 R15; 205/55 R16; 205/50 R17 |
|---|---|
| Wheels rims | 15; 16; 17 |
| Passengers seats | 5 |
|---|---|
| Trunk space min liter | cu. Ft. |
440 l15.54 cu. ft. |
| Trunk space max liter | cu. Ft. |
1486 l52.48 cu. ft. |
| Overall length mm - inch |
4115 mm162.01 in. |
|---|---|
| Overall width mm -inch |
1765 mm69.49 in. |
| Overall height mm -inch |
1600 mm62.99 in. |
| Wheelbase mm - inch |
2615 mm102.95 in. |
| Curb weight kg -lbs total |
1222 kg2694.05 lbs. |
|---|---|
| Fuel tank liters | gallons |
50 l13.21 US gal | 11 UK gal |
