Key specs

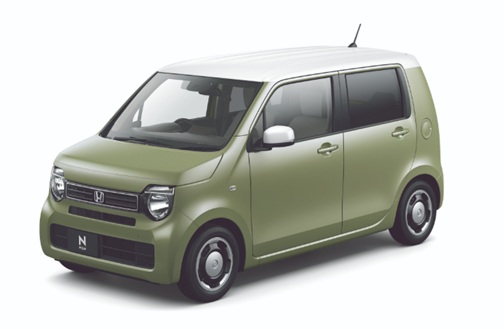

Honda N-WGN (Hatchback) N-WGN II 2019,2020,2021,2022,2023,2024
What is the body type, Honda N-WGN II 0.7 (64 Hp) CVT 2019?
Hatchback, 5 Doors, 4 Seats
How much power, Honda N-WGN II 0.7 (64 Hp) CVT 2019?
64 Hp @ 6000 rpm.
97.3 Hp/l
What is the engine size, Honda N-WGN II 0.7 (64 Hp) CVT 2019?
658 cm3
40.15 cu. in.
How many cylinders, Honda N-WGN II 0.7 (64 Hp) CVT 2019?
3,
Inline
What is the drivetrain, Honda N-WGN II 0.7 (64 Hp) CVT 2019?
Front wheel drive,
How long is this vehicle, Honda N-WGN II 0.7 (64 Hp) CVT 2019?
3395 mm
133.66 in.
How wide is the vehicle, Honda N-WGN II 0.7 (64 Hp) CVT 2019?
1475 mm
58.07 in.
What is the curb weight, Honda N-WGN II 0.7 (64 Hp) CVT 2019?
850-870 kg
1873.93 - 1918.02 lbs.
Honda N-WGN (Hatchback) N-WGN II 2019,2020,2021,2022,2023,2024 Specs
General information
| Brand |
Honda |
| Model |
N-WGN (Hatchback) |
| Version |
N-WGN II |
| Engine version |
0.7 (64 Hp) CVT |
| Year production start |
2019 |
| Vehicle type |
Hatchback |
| Horsepower RPM |
64 Hp @ 6000 rpm. |
| Curb weight kg -lbs total |
850-870 kg
1873.93 - 1918.02 lbs.
|
| Overall length mm - inch |
3395 mm
133.66 in.
|
| Doors |
5 |
Engine specs
| Designation model |
S07B |
| Cam configuration |
DOHC
|
| Engine position and orientation |
Front, Transverse |
| Cylinders |
3 |
| Position of cylinders |
Inline |
| Displacement (liters) |
658 cm3
40.15 cu. in.
|
| Eng. horsepower RPM |
64 Hp @ 6000 rpm.
|
| Horsepower per litre |
97.3 Hp/l
|
| Weight / horsepower kg/hp - hp/tons |
13.3 kg/Hp
75.3 Hp/tonne
|
| Weight / torque kg/Nm - Nm/tons |
8.2 kg/Nm, 122.4 Nm/tonne
8.2 kg/Nm
122.4 Nm/tonne
|
| Torque Nm RPM lb-ft RPM |
104 Nm @ 2600 rpm.
76.71 lb.-ft. @ 2600 rpm.
|
| Bore (mm in) |
60 mm
2.36 in.
|
| Stroke (mm in) |
77.6 mm
3.06 in.
|
| Compression ratio |
12 |
| Fuel delivery system |
Multi-point indirect injection |
| Fuel type |
Petrol (Gasoline) |
| Valvetrain |
4 |
| Engine aspiration |
Turbocharger |
| Powertrain architecture |
Internal Combustion engine |
| Engine location |
Front, Transverse
|
Transmission and Drive system
| Drive configuration |
Front wheel drive
|
Brakes
| Front brakes |
Ventilated discs |
| Rear brakes |
Disc |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
| Turning diameter m - ft |
9.0 m
29.53 ft.
|
Suspension
| Front suspension |
Independent type McPherson |
| Rear suspension |
Torsion |
Wheels & Tyres
| Wheels size |
155/65 R14 75S; 165/55 R15 75V
|
| Wheels rims |
14; 15 |
Dimensions
| Overall length mm - inch |
3395 mm
133.66 in.
|
| Overall width mm -inch |
1475 mm
58.07 in.
|
| Overall height mm -inch |
1675 mm
65.94 in.
|
| Wheelbase mm - inch |
2520 mm
99.21 in.
|
| Track width front mm - inch |
1305 mm
51.38 in.
|
Weights
| Curb weight kg -lbs total |
850-870 kg
1873.93 - 1918.02 lbs.
|
| Fuel tank liters | gallons |
27 l
7.13 US gal | 5.94 UK gal
|
Engine type
3 CYLINDER INLINE
