Coupe, 3 Doors, 2 Seats
3.4 l/100 km 69.18 US mpg
76 Hp @ 5700 rpm.
76.4 Hp/l
177 km/h 109.98 mph
995 cm3
60.72 cu. in.
3, Inline
Front wheel drive,
3945 mm
155.31 in.
1695 mm
66.73 in.
835 kg
1840.86 lbs.

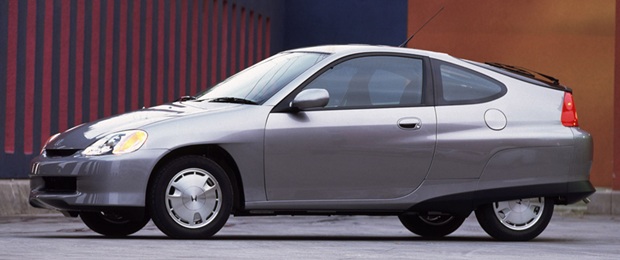

| Brand | Honda |
|---|---|
| Model | Insight (Coupe) |
| Version | Insight |
| Engine version | 1.0 i 12V (76 Hp) |
| Year production start | 1999 |
| Year production end | 2006 |
| Vehicle type | Coupe |
| Horsepower RPM | 76 Hp @ 5700 rpm. |
| Acceleration 0 - 100 kmh sec | 14.2 sec |
| Curb weight kg -lbs total |
835 kg1840.86 lbs. |
| Overall length mm - inch |
3945 mm155.31 in. |
| Doors | 3 |
| Top Speed | 177 km/h 109.98 mph |
| Cam configuration | OHC |
|---|---|
| Engine position and orientation | Front, Transverse |
| Cylinders | 3 |
| Position of cylinders | Inline |
| Displacement (liters) |
995 cm360.72 cu. in. |
| Eng. horsepower RPM | 76 Hp @ 5700 rpm. |
| Horsepower per litre | 76.4 Hp/l |
| Weight / horsepower kg/hp - hp/tons |
11 kg/Hp91 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 7.4 kg/Nm, 135.3 Nm/tonne
7.4 kg/Nm135.3 Nm/tonne |
| Torque Nm RPM lb-ft RPM |
113 Nm @ 1500 rpm.83.34 lb.-ft. @ 1500 rpm. |
| Stroke (mm in) |
81.5 mm3.21 in. |
| Compression ratio | 10.8 |
| Fuel delivery system | Multi-point indirect injection |
| Fuel type | Petrol (Gasoline) |
| Valvetrain | 4 |
| Engine aspiration | Naturally aspirated engine |
| Powertrain architecture | Internal Combustion engine |
| Engine location | Front, Transverse |
| Drive configuration | Front wheel drive |
|---|---|
| Transmission | 5 |
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Drum |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
|---|
| Front suspension | Spring Strut |
|---|---|
| Rear suspension | Helical spring |
| Wheels size | 165/65 R14 T |
|---|
| Passengers seats | 2 |
|---|---|
| Trunk space min liter | cu. Ft. |
140 l4.94 cu. ft. |
| Overall length mm - inch |
3945 mm155.31 in. |
|---|---|
| Overall width mm -inch |
1695 mm66.73 in. |
| Overall height mm -inch |
1355 mm53.35 in. |
| Wheelbase mm - inch |
2400 mm94.49 in. |
| Track width front mm - inch |
1435 mm56.5 in. |
| Track width rear mm - inch |
1325 mm52.17 in. |
| Curb weight kg -lbs total |
835 kg1840.86 lbs. |
|---|---|
| Gross weight kg -lbs total |
1040 kg2292.81 lbs. |
| Capacities kg - lbs |
205 kg451.95 lbs. |
| Fuel tank liters | gallons |
40 l10.57 US gal | 8.8 UK gal |
| Combined l/100 km - Mpg |
3.4 l/100 km69.18 US mpg |
|---|---|
| Autonomy km (combined use) | 1176 |
3 CYLINDER INLINE
