Key specs

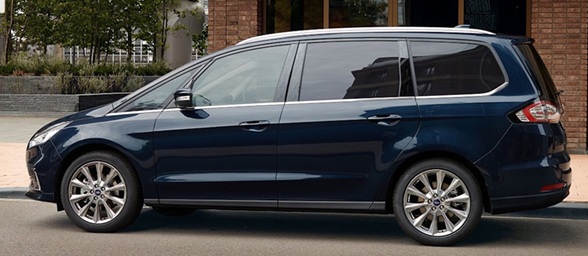

Ford Galaxy (Minivan) Galaxy III (facelift 2019) 2021,2022,2023
What is the body type, Ford Galaxy III (facelift 2019) 2.5 Duratec (190 Hp) Hybrid CVT 7 seats 2021?
Minivan, 5 Doors, 7 Seats
How much power, Ford Galaxy III (facelift 2019) 2.5 Duratec (190 Hp) Hybrid CVT 7 seats 2021?
150 Hp
60.3 Hp/l
How fast is the car, Ford Galaxy III (facelift 2019) 2.5 Duratec (190 Hp) Hybrid CVT 7 seats 2021?
182 km/h 113.09 mph
What is the engine size, Ford Galaxy III (facelift 2019) 2.5 Duratec (190 Hp) Hybrid CVT 7 seats 2021?
2488 cm3
151.83 cu. in.
How many cylinders, Ford Galaxy III (facelift 2019) 2.5 Duratec (190 Hp) Hybrid CVT 7 seats 2021?
4,
Inline
What is the drivetrain, Ford Galaxy III (facelift 2019) 2.5 Duratec (190 Hp) Hybrid CVT 7 seats 2021?
Front wheel drive,
How long is this vehicle, Ford Galaxy III (facelift 2019) 2.5 Duratec (190 Hp) Hybrid CVT 7 seats 2021?
4848 mm
190.87 in.
How wide is the vehicle, Ford Galaxy III (facelift 2019) 2.5 Duratec (190 Hp) Hybrid CVT 7 seats 2021?
1916 mm
75.43 in.
What is the curb weight, Ford Galaxy III (facelift 2019) 2.5 Duratec (190 Hp) Hybrid CVT 7 seats 2021?
1903 kg
4195.4 lbs.
Ford Galaxy (Minivan) Galaxy III (facelift 2019) 2021,2022,2023 Specs
General information
| Brand |
Ford |
| Model |
Galaxy (Minivan) |
| Version |
Galaxy III (facelift 2019) |
| Engine version |
2.5 Duratec (190 Hp) Hybrid CVT 7 seats |
| Year production start |
2021 |
| Year production end |
2023 |
| Vehicle type |
Minivan |
| Horsepower RPM |
150 Hp |
| Acceleration 0 - 100 kmh sec |
10 sec |
| Curb weight kg -lbs total |
1903 kg
4195.4 lbs.
|
| Overall length mm - inch |
4848 mm
190.87 in.
|
| Doors |
5 |
| Top Speed |
182 km/h 113.09 mph |
Engine specs
| Cam configuration |
DOHC
|
| Engine position and orientation |
Front, Transverse |
| Cylinders |
4 |
| Position of cylinders |
Inline |
| Displacement (liters) |
2488 cm3
151.83 cu. in.
|
| Eng. horsepower RPM |
150 Hp
|
| Horsepower per litre |
60.3 Hp/l
|
| Weight / horsepower kg/hp - hp/tons |
10 kg/Hp
99.8 Hp/tonne
|
| Weight / torque kg/Nm - Nm/tons |
9.5 kg/Nm, 105.1 Nm/tonne
9.5 kg/Nm
105.1 Nm/tonne
|
| Torque Nm RPM lb-ft RPM |
200 Nm @ 4500 rpm.
147.51 lb.-ft. @ 4500 rpm.
|
| Bore (mm in) |
89 mm
3.5 in.
|
| Stroke (mm in) |
100 mm
3.94 in.
|
| Fuel type |
Petrol (Gasoline) |
| Valvetrain |
4 |
| Emission certification |
Euro 6d-ISC-FCM
|
| Powertrain architecture |
FHEV (Full Hybrid Electric Vehicle) |
| Electric motor power |
133 Hp
|
| Engine location |
Front, Transverse
|
| Total available power |
190 Hp
|
Transmission and Drive system
| Drive configuration |
Front wheel drive
|
Brakes
| Front brakes |
Ventilated discs |
| Rear brakes |
Disc |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
Suspension
| Front suspension |
Independent type McPherson, Transverse stabilizer |
| Rear suspension |
Transverse stabilizer, Independent multi-link |
Wheels & Tyres
| Wheels size |
235/55 R17; 235/50 R18
|
| Wheels rims |
7.5J x 17; 7.5J x 18 |
Passenger
| Passengers seats |
7 |
| Trunk space min liter | cu. Ft. |
1206 l
42.59 cu. ft.
|
| Trunk space max liter | cu. Ft. |
2339 l
82.6 cu. ft.
|
| Roof load load kg lbs |
75 kg
165.35 lbs.
|
Dimensions
| Overall length mm - inch |
4848 mm
190.87 in.
|
| Overall width mm -inch |
1916 mm
75.43 in.
|
| Overall height mm -inch |
1747 mm
68.78 in.
|
| Wheelbase mm - inch |
2850 mm
112.2 in.
|
Weights
| Curb weight kg -lbs total |
1903 kg
4195.4 lbs.
|
| Gross weight kg -lbs total |
2596 kg
5723.2 lbs.
|
| Capacities kg - lbs |
693 kg
1527.8 lbs.
|
| Fuel tank liters | gallons |
65 l
17.17 US gal | 14.3 UK gal
|
Fuel economy
| Urban (NEDC) l/100 km - Mpg |
6.5-6.6 l/100 km
36.19 - 35.64 US mpg
|
| Extra urban (NEDC) l/100 km - Mpg |
5.5 l/100 km
42.77 US mpg
|
| Combined (NEDC) l/100 km - Mpg |
5.8-5.9 l/100 km
40.55 - 39.87 US mpg
|
| Autonomy km (combined use) NEDC |
1120?689655 |
| Combined fuel consumption (WLTP) |
6.5 l/100 km 36.19 US mpg |
Engine type
4 CYLINDER INLINE
