Hatchback, 5 Doors, 5 Seats
9.4 l/100 km 25.02 US mpg
5.5 l/100 km 42.77 US mpg
109 Hp @ 4300 rpm.
54.6 Hp/l
190 km/h 118.06 mph
1997 cm3
121.86 cu. in.
4, Inline
Front wheel drive,
4524 mm
178.11 in.
1755 mm
69.09 in.
1380 kg
3042.38 lbs.

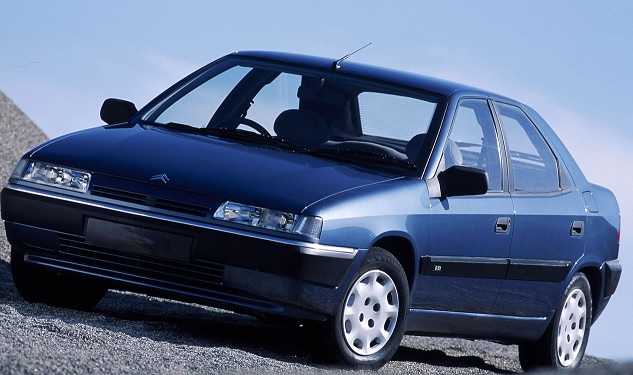

| Brand | Citroen |
|---|---|
| Model | Xantia (Hatchback) |
| Version | Xantia (X2) |
| Engine version | 2.1 Turbo D 12V (109 Hp) |
| Year production start | 1998 |
| Year production end | 2001 |
| Vehicle type | Hatchback |
| Horsepower RPM | 109 Hp @ 4300 rpm. |
| Acceleration 0 - 100 kmh sec | 12.2 sec |
| Curb weight kg -lbs total |
1380 kg3042.38 lbs. |
| Overall length mm - inch |
4524 mm178.11 in. |
| Doors | 5 |
| Top Speed | 190 km/h 118.06 mph |
| Cam configuration | DOHC |
|---|---|
| Engine position and orientation | Front, Transverse |
| Cylinders | 4 |
| Position of cylinders | Inline |
| Displacement (liters) |
1997 cm3121.86 cu. in. |
| Eng. horsepower RPM | 109 Hp @ 4300 rpm. |
| Horsepower per litre | 54.6 Hp/l |
| Weight / horsepower kg/hp - hp/tons |
12.7 kg/Hp79 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 5.5 kg/Nm, 181.2 Nm/tonne
5.5 kg/Nm181.2 Nm/tonne |
| Torque Nm RPM lb-ft RPM |
250 Nm @ 2000 rpm.184.39 lb.-ft. @ 2000 rpm. |
| Bore (mm in) |
85 mm3.35 in. |
| Stroke (mm in) |
88 mm3.46 in. |
| Compression ratio | 18 |
| Fuel delivery system | Diesel - Standard diesel injection (SDI) |
| Fuel type | Diesel |
| Valvetrain | 2 |
| Engine aspiration | Turbocharger |
| Powertrain architecture | Internal Combustion engine |
| Engine location | Front, Transverse |
| Drive configuration | Front wheel drive |
|---|---|
| Transmission | 5 |
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Ventilated discs |
| Brake control | Disc |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
|---|
| Front suspension | Hydro-pneumatic element |
|---|---|
| Rear suspension | Hydro-pneumatic element |
| Wheels size | 185/65 R15 |
|---|
| Passengers seats | 5 |
|---|---|
| Trunk space min liter | cu. Ft. |
435 l15.36 cu. ft. |
| Trunk space max liter | cu. Ft. |
1405 l49.62 cu. ft. |
| Overall length mm - inch |
4524 mm178.11 in. |
|---|---|
| Overall width mm -inch |
1755 mm69.09 in. |
| Overall height mm -inch |
1400 mm55.12 in. |
| Wheelbase mm - inch |
2740 mm107.87 in. |
| Track width front mm - inch |
1500 mm59.06 in. |
| Track width rear mm - inch |
1470 mm57.87 in. |
| Curb weight kg -lbs total |
1380 kg3042.38 lbs. |
|---|---|
| Gross weight kg -lbs total |
1910 kg4210.83 lbs. |
| Capacities kg - lbs |
530 kg1168.45 lbs. |
| Fuel tank liters | gallons |
65 l17.17 US gal | 14.3 UK gal |
| City l/100km - mpg |
9.4 l/100 km25.02 US mpg |
|---|---|
| Highway l/100 km - mpg |
5.5 l/100 km42.77 US mpg |
