SUV, 5 Doors, 7 Seats
8.2 l/100 km 28.68 US mpg
10.8 l/100 km 21.78 US mpg
6.8 l/100 km 34.59 US mpg
170 Hp @ 6000 rpm.
72.1 Hp/l
190 km/h 118.06 mph
2359 cm3
143.96 cu. in.
4, Inline
All wheel drive (4x4),
4646 mm
182.91 in.
1806 mm
71.1 in.
1715 kg
3780.93 lbs.

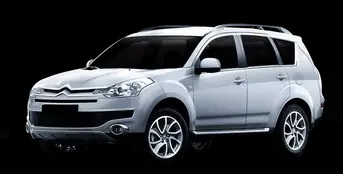

| Brand | Citroen |
|---|---|
| Model | C-Crosser (SUV) |
| Version | C-Crosser |
| Engine version | 2.4i 16V (170 Hp) CVT 7 Seats |
| Year production start | 2008 |
| Year production end | 2012 |
| Vehicle type | SUV |
| Horsepower RPM | 170 Hp @ 6000 rpm. |
| Acceleration 0 - 100 kmh sec | 11.7 sec |
| Curb weight kg -lbs total |
1715 kg3780.93 lbs. |
| Overall length mm - inch |
4646 mm182.91 in. |
| Doors | 5 |
| Top Speed | 190 km/h 118.06 mph |
| Designation model | VVSFZC |
|---|---|
| Cam configuration | DOHC |
| Engine position and orientation | Front, Transverse |
| Cylinders | 4 |
| Position of cylinders | Inline |
| Displacement (liters) |
2359 cm3143.96 cu. in. |
| Eng. horsepower RPM | 170 Hp @ 6000 rpm. |
| Horsepower per litre | 72.1 Hp/l |
| Weight / horsepower kg/hp - hp/tons |
10.1 kg/Hp99.1 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 7.4 kg/Nm, 135.3 Nm/tonne
7.4 kg/Nm135.3 Nm/tonne |
| Torque Nm RPM lb-ft RPM |
232 Nm @ 4100 rpm.171.11 lb.-ft. @ 4100 rpm. |
| Bore (mm in) |
88 mm3.46 in. |
| Stroke (mm in) |
97 mm3.82 in. |
| Compression ratio | 10.5 |
| Fuel delivery system | Multi-point indirect injection |
| Fuel type | Petrol (Gasoline) |
| Valvetrain | 4 |
| Engine aspiration | Naturally aspirated engine |
| Engine oil liters | quarts |
4.6 l4.86 US qt | 4.05 UK qt |
| Engine coolant |
7.5 l7.93 US qt | 6.6 UK qt |
| Emission certification | Euro 4 |
| Powertrain architecture | Internal Combustion engine |
| Engine location | Front, Transverse |
| Drive configuration | All wheel drive (4x4) |
|---|
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Ventilated discs |
| Brake control | Disc |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
|---|---|
| Turning diameter m - ft |
12 m39.37 ft. |
| Front suspension | Independent, Spring McPherson, with stabilizer |
|---|---|
| Rear suspension | Independent, spring multi-link with stabilizer |
| Wheels size | 225/55 R18 |
|---|---|
| Wheels rims | 18 |
| Passengers seats | 7 |
|---|---|
| Trunk space min liter | cu. Ft. |
184 l6.5 cu. ft. |
| Trunk space max liter | cu. Ft. |
1686 l59.54 cu. ft. |
| Roof load load kg lbs |
80 kg176.37 lbs. |
| Overall length mm - inch |
4646 mm182.91 in. |
|---|---|
| Overall width mm -inch |
1806 mm71.1 in. |
| Overall height mm -inch |
1715 mm67.52 in. |
| Wheelbase mm - inch |
2670 mm105.12 in. |
| Track width front mm - inch |
1540 mm60.63 in. |
| Track width rear mm - inch |
1540 mm60.63 in. |
| Coefficient of drag | 0.36 |
| Curb weight kg -lbs total |
1715 kg3780.93 lbs. |
|---|---|
| Gross weight kg -lbs total |
2290 kg5048.59 lbs. |
| Capacities kg - lbs |
575 kg1267.66 lbs. |
| Fuel tank liters | gallons |
60 l15.85 US gal | 13.2 UK gal |
| City l/100km - mpg |
10.8 l/100 km21.78 US mpg |
|---|---|
| Highway l/100 km - mpg |
6.8 l/100 km34.59 US mpg |
| Combined l/100 km - Mpg |
8.2 l/100 km28.68 US mpg |
| Autonomy km (combined use) | 732 |
