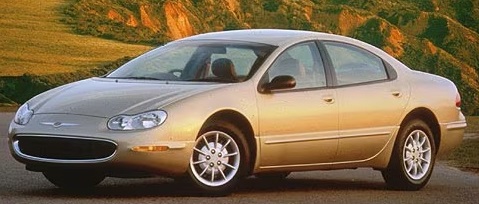

Chrysler Concorde II 3.5 i V6 24V (258 Hp) 2002

Key specs

Chrysler Concorde (Sedan) Concorde II 2002,2003,2004

What is the body type, Chrysler Concorde II 3.5 i V6 24V (258 Hp) 2002?

Sedan, 4 Doors, 5 Seats

What is the fuel economy, Chrysler Concorde II 3.5 i V6 24V (258 Hp) 2002?

12.4 l/100 km 18.97 US mpg
9.1 l/100 km 25.85 US mpg

How much power, Chrysler Concorde II 3.5 i V6 24V (258 Hp) 2002?

258 Hp @ 6500 rpm.
73.3 Hp/l

How fast is the car, Chrysler Concorde II 3.5 i V6 24V (258 Hp) 2002?

225 km/h 139.81 mph

What is the engine size, Chrysler Concorde II 3.5 i V6 24V (258 Hp) 2002?

3518 cm3
214.68 cu. in.

How many cylinders, Chrysler Concorde II 3.5 i V6 24V (258 Hp) 2002?

6, V-engine

What is the drivetrain, Chrysler Concorde II 3.5 i V6 24V (258 Hp) 2002?

Front wheel drive,

How long is this vehicle, Chrysler Concorde II 3.5 i V6 24V (258 Hp) 2002?

5310 mm
209.06 in.

How wide is the vehicle, Chrysler Concorde II 3.5 i V6 24V (258 Hp) 2002?

1890 mm
74.41 in.

What is the curb weight, Chrysler Concorde II 3.5 i V6 24V (258 Hp) 2002?

1690 kg
3725.81 lbs.

Chrysler Concorde (Sedan) Concorde II 2002,2003,2004 Specs

General information

Brand Chrysler
Model Concorde (Sedan)
Version Concorde II
Engine version 3.5 i V6 24V (258 Hp)
Year production start 2002
Year production end 2004
Vehicle type Sedan
Horsepower RPM 258 Hp @ 6500 rpm.
Curb weight kg -lbs total

1690 kg

3725.81 lbs.
Overall length mm - inch

5310 mm

209.06 in.
Doors 4
Top Speed 225 km/h 139.81 mph

Engine specs

Engine position and orientation Front, Longitudinal
Cylinders 6
Position of cylinders V-engine
Displacement (liters)

3518 cm3

214.68 cu. in.
Eng. horsepower RPM 258 Hp @ 6500 rpm.
Horsepower per litre 73.3 Hp/l
Weight / horsepower kg/hp - hp/tons

6.6 kg/Hp

152.7 Hp/tonne
Weight / torque kg/Nm - Nm/tons 4.9 kg/Nm, 205.9 Nm/tonne

4.9 kg/Nm

205.9 Nm/tonne
Torque Nm RPM lb-ft RPM

348 Nm @ 3900 rpm.

256.67 lb.-ft. @ 3900 rpm.
Bore (mm in)

96 mm

3.78 in.
Stroke (mm in)

81 mm

3.19 in.
Compression ratio 10
Fuel delivery system Multi-point indirect injection
Fuel type Petrol (Gasoline)
Valvetrain 4
Engine aspiration Naturally aspirated engine
Powertrain architecture Internal Combustion engine
Engine location Front, Longitudinal

Transmission and Drive system

Drive configuration Front wheel drive

Brakes

Front brakes Ventilated discs
Rear brakes Ventilated discs
Brake control Disc
Anti-lock brake system ABS (Anti-lock braking system)

Steering

Steering type Steering rack and pinion

Suspension

Front suspension Coil spring
Rear suspension Helical spring

Body / Chassis

Wheels & Tyres

Wheels size 225/55 R17

Exterior

Interior

Safety and Security

Passenger

Passengers seats 5
Trunk space min liter | cu. Ft.

476 l

16.81 cu. ft.
Trunk space max liter | cu. Ft.

530 l

18.72 cu. ft.

Dimensions

Overall length mm - inch

5310 mm

209.06 in.
Overall width mm -inch

1890 mm

74.41 in.
Overall height mm -inch

1435 mm

56.5 in.
Wheelbase mm - inch

2870 mm

112.99 in.
Track width front mm - inch

1572 mm

61.89 in.
Track width rear mm - inch

1562 mm

61.5 in.

Weights

Curb weight kg -lbs total

1690 kg

3725.81 lbs.
Fuel tank liters | gallons

65 l

17.17 US gal | 14.3 UK gal

Fuel economy

City l/100km - mpg

12.4 l/100 km

18.97 US mpg
Highway l/100 km - mpg

9.1 l/100 km

25.85 US mpg

Engine type

6 CYLINDER V-Engine
