SUV, 5 Doors, 5 Seats
340 Hp @ 4400 rpm.
113.6 Hp/l
250 km/h 155.34 mph
2993 cm3
182.64 cu. in.
6, Inline
All wheel drive (4x4),
4752 mm
187.09 in.
1938 mm
76.3 in.
2020 kg
4453.34 lbs.

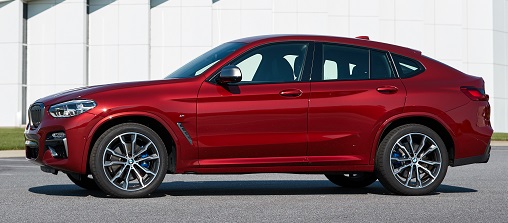

| Brand | BMW |
|---|---|
| Model | X4 (SUV) |
| Version | X4 (G02) |
| Engine version | M40d (340 Hp) xDrive MHEV Steptronic |
| Year production start | 2020 |
| Year production end | 2021 |
| Vehicle type | SUV |
| Horsepower RPM | 340 Hp @ 4400 rpm. |
| Acceleration 0 - 100 kmh sec | 4.9 sec |
| Curb weight kg -lbs total |
2020 kg4453.34 lbs. |
| Overall length mm - inch |
4752 mm187.09 in. |
| Doors | 5 |
| Top Speed | 250 km/h 155.34 mph |
| Designation model | B57D30 |
|---|---|
| Engine position and orientation | Front, Longitudinal |
| Cylinders | 6 |
| Position of cylinders | Inline |
| Displacement (liters) |
2993 cm3182.64 cu. in. |
| Eng. horsepower RPM | 340 Hp @ 4400 rpm. |
| Horsepower per litre | 113.6 Hp/l |
| Weight / horsepower kg/hp - hp/tons |
5.9 kg/Hp168.3 Hp/tonne |
| Weight / torque kg/Nm - Nm/tons | 2.9 kg/Nm, 346.5 Nm/tonne
2.9 kg/Nm346.5 Nm/tonne |
| Torque Nm RPM lb-ft RPM |
700 Nm @ 1750-2250 rpm.516.29 lb.-ft. @ 1750-2250 rpm. |
| Bore (mm in) |
84 mm3.31 in. |
| Stroke (mm in) |
90 mm3.54 in. |
| Compression ratio | 16.5 |
| Fuel delivery system | Diesel Commonrail |
| Fuel type | Diesel |
| Valvetrain | 4 |
| Engine aspiration | Twin-power turbo, Intercooler |
| Emission certification | EURO 6d |
| Powertrain architecture | MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV) |
| Electric motor power | 11 Hp |
| Engine location | Front, Longitudinal |
| Drive configuration | All wheel drive (4x4) |
|---|
| Front brakes | Ventilated discs |
|---|---|
| Rear brakes | Ventilated discs |
| Brake control | Ventilated discs |
| Anti-lock brake system | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
|---|---|
| Turning diameter m - ft |
12.1 m39.7 ft. |
| Front suspension | Double wishbone |
|---|---|
| Rear suspension | Multi-link independent |
| Wheels size | Front wheel tires: 245/45 R20 103W XL |
|---|---|
| Wheels rims | Front wheel rims: 8J x 20 |
| Passengers seats | 5 |
|---|---|
| Trunk space min liter | cu. Ft. |
525 l18.54 cu. ft. |
| Trunk space max liter | cu. Ft. |
1430 l50.5 cu. ft. |
| Roof load load kg lbs |
100 kg220.46 lbs. |
| Overall length mm - inch |
4752 mm187.09 in. |
|---|---|
| Overall width mm -inch |
1938 mm76.3 in. |
| Overall height mm -inch |
1621 mm63.82 in. |
| Wheelbase mm - inch |
2864 mm112.76 in. |
| Track width front mm - inch |
1615 mm63.58 in. |
| Track width rear mm - inch |
1624 mm63.94 in. |
| Coefficient of drag | 0.3 |
| Curb weight kg -lbs total |
2020 kg4453.34 lbs. |
|---|---|
| Gross weight kg -lbs total |
2555 kg5632.81 lbs. |
| Capacities kg - lbs |
535 kg1179.47 lbs. |
| Fuel tank liters | gallons |
68 l17.96 US gal | 14.96 UK gal |
