Key specs

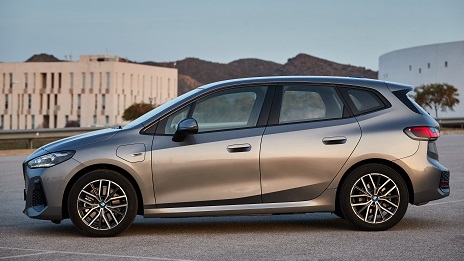

BMW 2 Series (MPV) 2 Series Active Tourer (U06) 2022,2023,2024,2025
What is the body type, BMW 2 Series Active Tourer (U06) 230e (326 Hp) Plug-in Hybrid xDrive Steptronic 2022?
MPV, 5 Doors, 5 Seats
How much power, BMW 2 Series Active Tourer (U06) 230e (326 Hp) Plug-in Hybrid xDrive Steptronic 2022?
150 Hp @ 4700-6500 rpm.
100.1 Hp/l
How fast is the car, BMW 2 Series Active Tourer (U06) 230e (326 Hp) Plug-in Hybrid xDrive Steptronic 2022?
205 km/h 127.38 mph
What is the engine size, BMW 2 Series Active Tourer (U06) 230e (326 Hp) Plug-in Hybrid xDrive Steptronic 2022?
1499 cm3
91.47 cu. in.
How many cylinders, BMW 2 Series Active Tourer (U06) 230e (326 Hp) Plug-in Hybrid xDrive Steptronic 2022?
3,
Inline
What is the drivetrain, BMW 2 Series Active Tourer (U06) 230e (326 Hp) Plug-in Hybrid xDrive Steptronic 2022?
All wheel drive (4x4),
How long is this vehicle, BMW 2 Series Active Tourer (U06) 230e (326 Hp) Plug-in Hybrid xDrive Steptronic 2022?
4386 mm
172.68 in.
How wide is the vehicle, BMW 2 Series Active Tourer (U06) 230e (326 Hp) Plug-in Hybrid xDrive Steptronic 2022?
1824 mm
71.81 in.
What is the curb weight, BMW 2 Series Active Tourer (U06) 230e (326 Hp) Plug-in Hybrid xDrive Steptronic 2022?
1845 kg
4067.53 lbs.
BMW 2 Series (MPV) 2 Series Active Tourer (U06) 2022,2023,2024,2025 Specs
General information
| Brand |
BMW |
| Model |
2 Series (MPV) |
| Version |
2 Series Active Tourer (U06) |
| Engine version |
230e (326 Hp) Plug-in Hybrid xDrive Steptronic |
| Year production start |
2022 |
| Vehicle type |
MPV |
| Horsepower RPM |
150 Hp @ 4700-6500 rpm. |
| Acceleration 0 - 100 kmh sec |
5.5 sec |
| Curb weight kg -lbs total |
1845 kg
4067.53 lbs.
|
| Overall length mm - inch |
4386 mm
172.68 in.
|
| Doors |
5 |
| Top Speed |
205 km/h 127.38 mph |
Engine specs
| Designation model |
B38A15P |
| Engine position and orientation |
Front, Transverse |
| Cylinders |
3 |
| Position of cylinders |
Inline |
| Displacement (liters) |
1499 cm3
91.47 cu. in.
|
| Eng. horsepower RPM |
150 Hp @ 4700-6500 rpm.
|
| Horsepower per litre |
100.1 Hp/l
|
| Weight / horsepower kg/hp - hp/tons |
5.7 kg/Hp
176.7 Hp/tonne
|
| Weight / torque kg/Nm - Nm/tons |
3.9 kg/Nm, 258.5 Nm/tonne
3.9 kg/Nm
258.5 Nm/tonne
|
| Torque Nm RPM lb-ft RPM |
230 Nm @ 1500-4400 rpm.
169.64 lb.-ft. @ 1500-4400 rpm.
|
| Fuel type |
petrol / electricity |
| Valvetrain |
4 |
| Engine aspiration |
Twin-power turbo, Intercooler |
| Emission certification |
Euro 6d
|
| Powertrain architecture |
PHEV (Plug-in Hybrid Electric Vehicle) |
| Electric motor power |
177 Hp
|
| Electric motor torque |
247 Nm 182.18 lb.-ft.
|
| Total available power |
326 Hp
|
| Totale available torque |
477 Nm 351.82 lb.-ft.
|
Transmission and Drive system
| Drive configuration |
All wheel drive (4x4)
|
Brakes
| Front brakes |
Ventilated discs |
| Rear brakes |
Ventilated discs |
| Anti-lock brake system |
ABS (Anti-lock braking system) |
Steering
| Steering type |
Steering rack and pinion |
Suspension
| Front suspension |
Independent, type McPherson with coil spring and anti-roll bar |
| Rear suspension |
Independent multi-link spring suspension with stabilizer |
Wheels & Tyres
| Wheels size |
205/60 R17 97W XL
|
| Wheels rims |
7J x 17 |
Passenger
| Passengers seats |
5 |
| Trunk space min liter | cu. Ft. |
406 l
14.34 cu. ft.
|
| Trunk space max liter | cu. Ft. |
1370 l
48.38 cu. ft.
|
Dimensions
| Overall length mm - inch |
4386 mm
172.68 in.
|
| Overall width mm -inch |
1824 mm
71.81 in.
|
| Overall height mm -inch |
1576 mm
62.05 in.
|
| Wheelbase mm - inch |
2670 mm
105.12 in.
|
| Track width front mm - inch |
1586 mm
62.44 in.
|
| Track width rear mm - inch |
1588 mm
62.52 in.
|
Weights
| Curb weight kg -lbs total |
1845 kg
4067.53 lbs.
|
| Gross weight kg -lbs total |
2420 kg
5335.19 lbs.
|
| Capacities kg - lbs |
575 kg
1267.66 lbs.
|
| Fuel tank liters | gallons |
47 l
12.42 US gal | 10.34 UK gal
|
Fuel economy
| Combined fuel consumption (WLTP) |
0.6-0.8 l/100 km 392.02 - 294.02 US mpg |
Engine type
3 CYLINDER INLINE
